Dorado 308

WG22 Isolator, 33 - 40GHz

(Serial Number 2276 , Stock Number 2276)

Warranty: 30 Days

Shipping: Request Quote



This item is a broadband ferrite isolator in WG22. Covering from 33GHz to more than 40GHz with insertion loss under 1dB and isolation over 20dB. In excellent cosmetic condition, tested with data to 40GHz.

Typical Specifications:

See plot for measured performance of this actual item.

  • Frequency: 33 - 40GHz**

  • Insertion Loss: <1dB

  • Isolation: >20dB

  • Connections: WG22

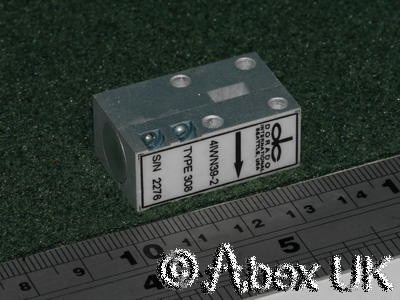

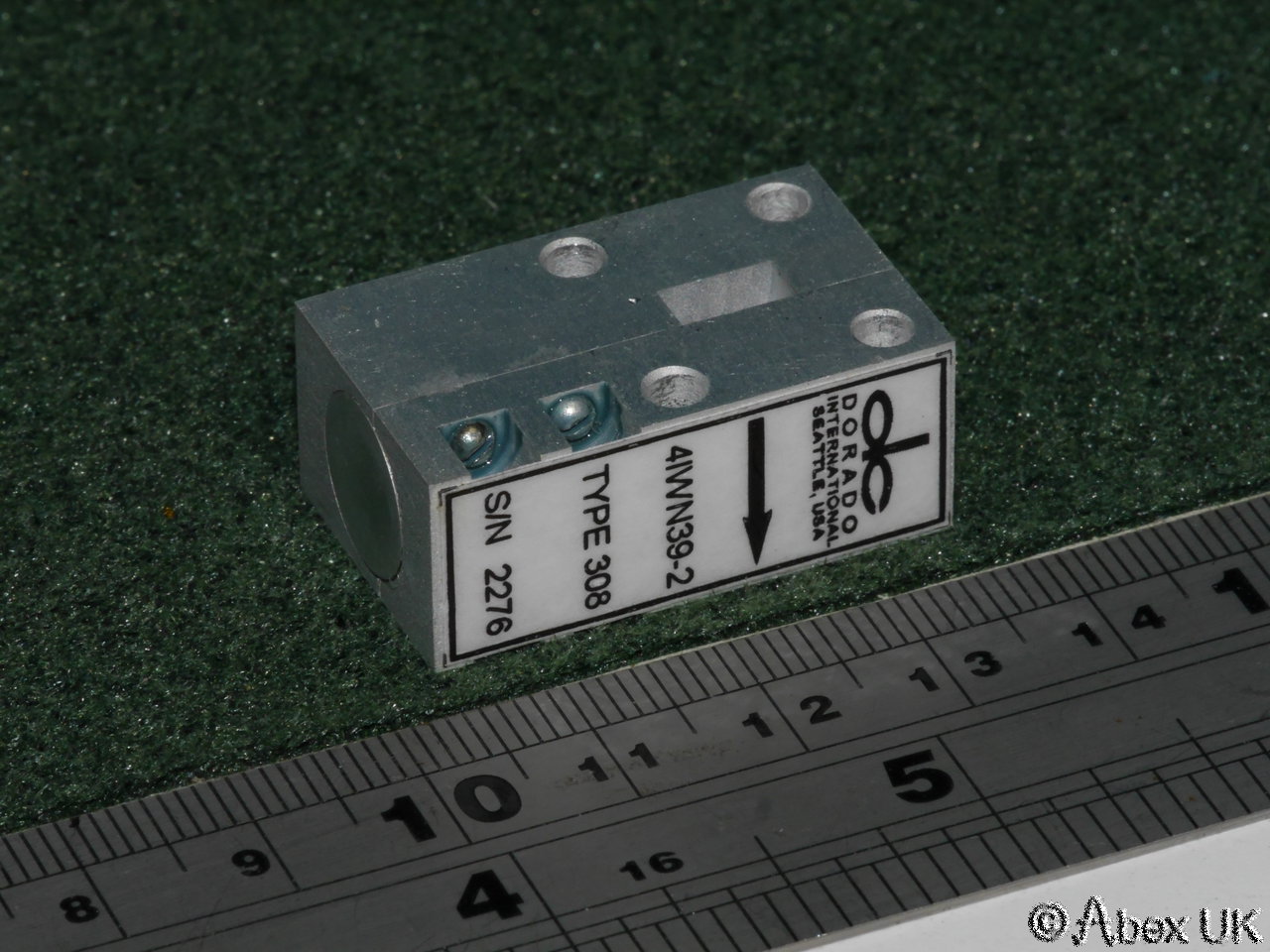

Actual item

Dorado 308 WG22 Isolator, 33 - 40GHz**  See Plot

(Click on image to view a high resolution version)

A representative network analyser test configuration

The actual equipment used to test the above item may differ.

Please enquire for further details.



(Click on image to view a high resolution version)

Actual item, measured performance.
