Farran Technology 000

PIN Switch, WG22

(Serial Number 3620 , Stock Number 3620)

Warranty: 30 Days

Shipping: Request Quote



This item is a high speed PIN switch manufactured by Farran Technology in Ireland. It operates satisfactorily over the 26.5 - 40GHz band, with the lowest insertion loss observed between 30 and 32GHz.. The power supplies required are +5V and -12V, the control input being TTL compatible. The connector required is a 4-pin Fischer, pinout provided to buyer. Switching speed approximately 20nS. Gold plated. Oddly, no part number visible on it.

In excellent clean cosmetic condition and tested working. Please see measurement plot below.

Typical Specifications:

See plot for measured performance of this actual item.

  • Frequency: 26.5 - 40GHz

  • Insertion Loss: <2.5dB

  • Isolation: >20dB

  • Connections: WG22

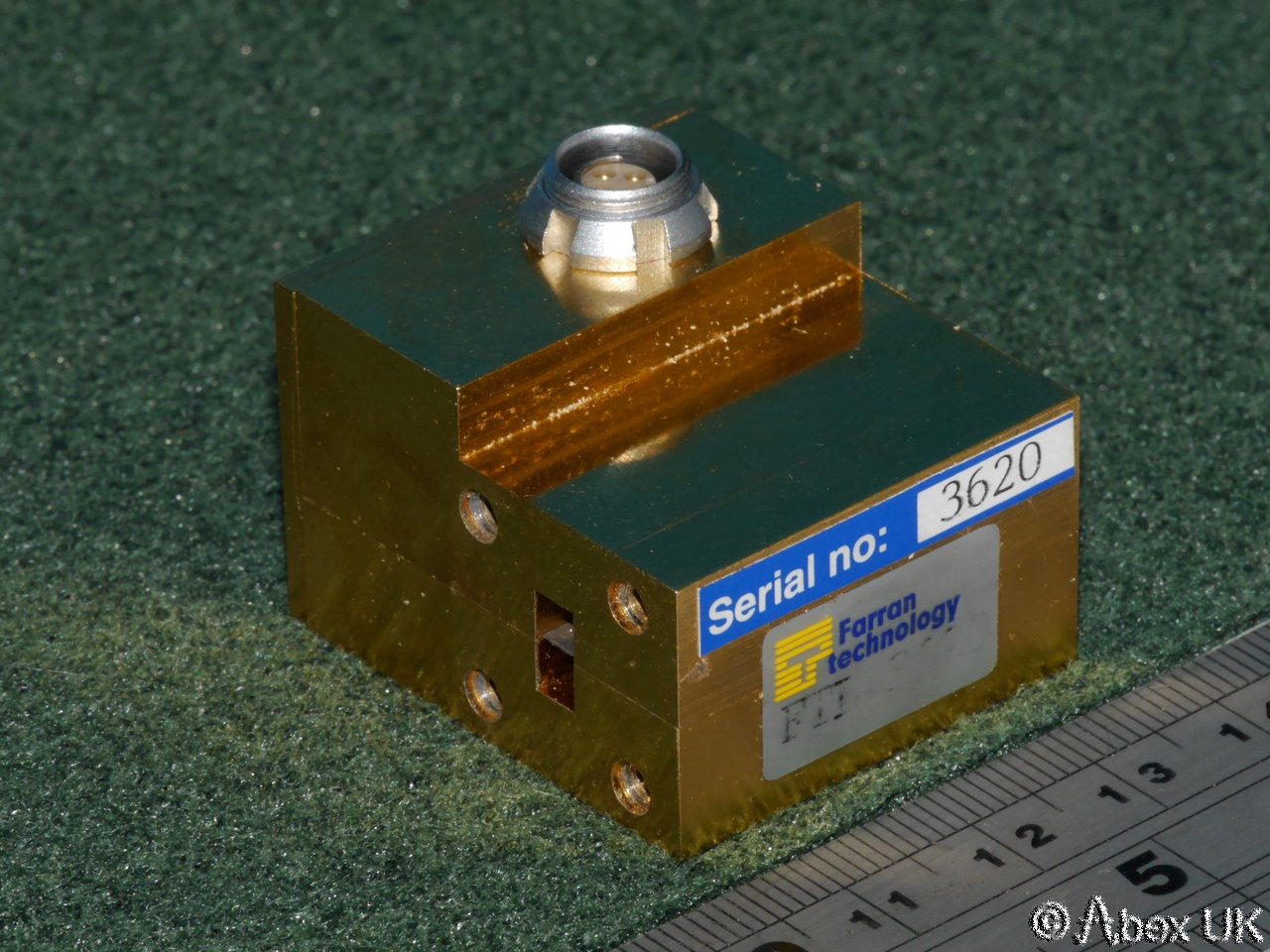

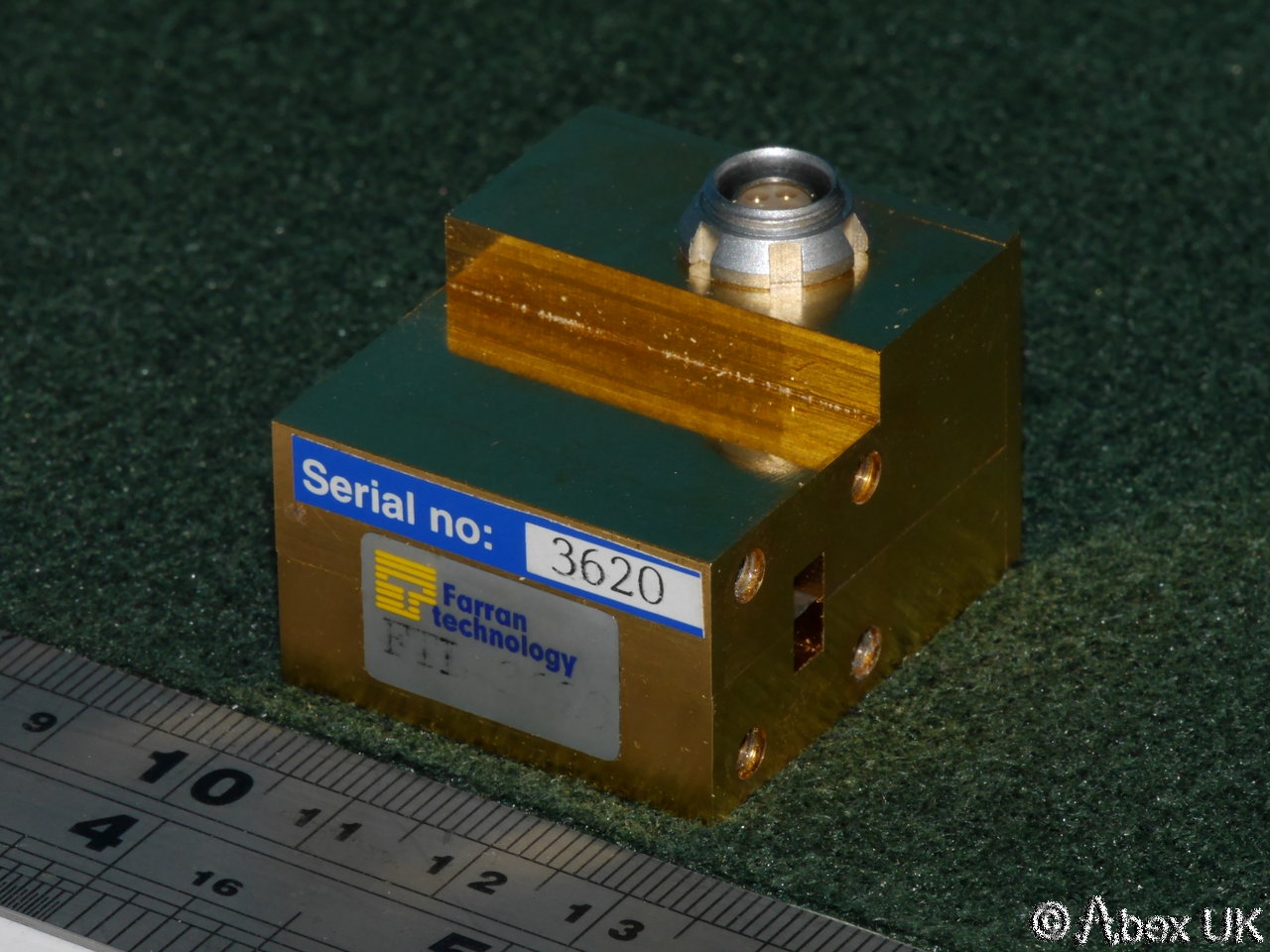

Farran Technology 26.5 - 40GHz WG22 / WR28 Fast PIN Microwave RF Switch, SPST

(Click on image to view a high resolution version)

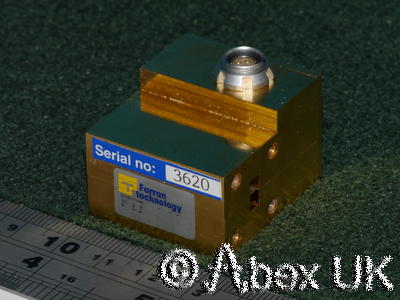

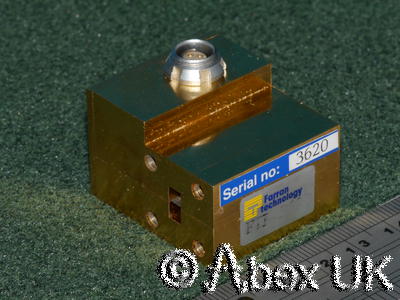

Farran Technology 26.5 - 40GHz WG22 / WR28 Fast PIN Microwave RF Switch, SPST

(Click on image to view a high resolution version)

A representative network analyser test configuration

The actual equipment used to test the above item may differ.

Please enquire for further details.



(Click on image to view a high resolution version)

Actual item, measured performance.
