Thomson TH2441

4.4-5.0GHz Klystron Amplifier 1.3kW

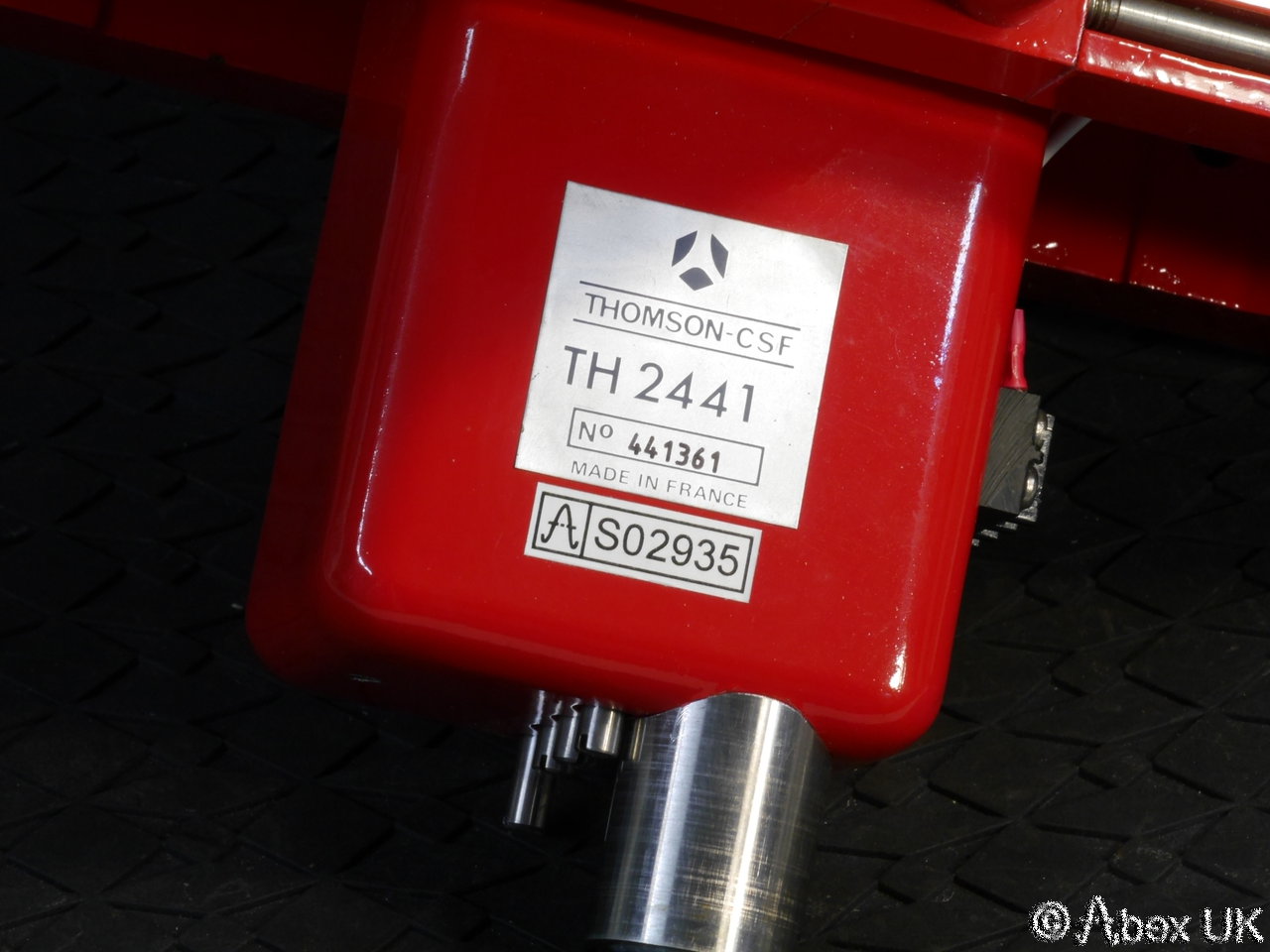

(Serial Number 441361 , Stock Number s02935)

Without Warranty

Shipping: Request Quote



NOS (New, Old Stock) Thomson CSF klystron amplifier tube. Designed for communication equipment, this tube is rated for 1.3kW CW output, and is tunable over the 4.4 to 5.0GHz band. The cathode bias supply is varied to adjust the saturated output power, approximately 3kV for 150W, up to 6.7kV for the full 1.3kW. Type "N" input connector and waveguide output. Forced air cooling. Absolutely unused, excellent condition. May have applications in EMC testing, materials research etc.

Abex (UK) is experienced with high power RF generators including klystrons and pulsed magnetrons, having worked in this field developing power supplies and modulators for EMC testing applications. If you have any applications questions or require assistance in this area, please enquire.

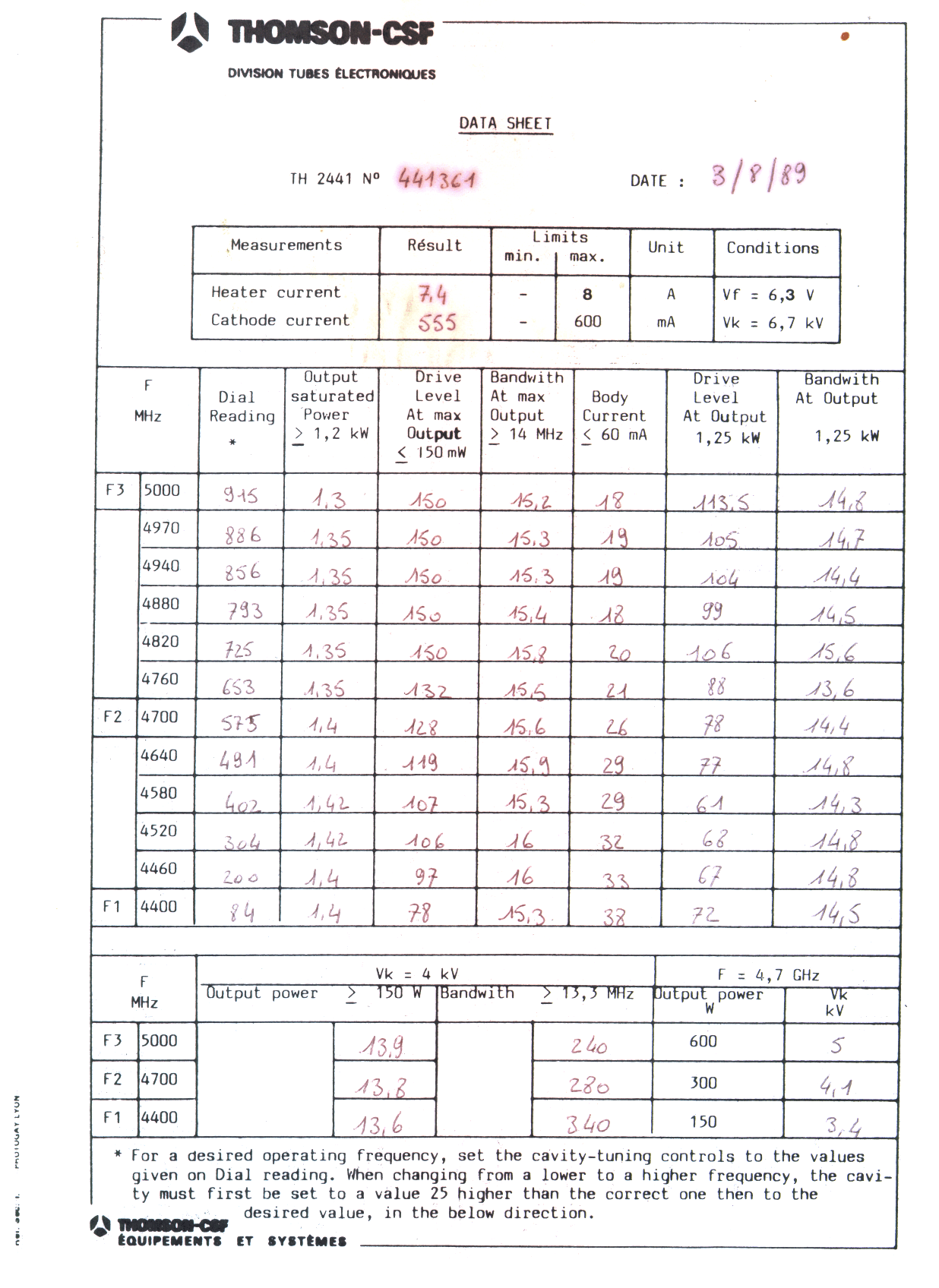

Please see the datasheet (link below) for the manufacturers full test data on THIS tube.

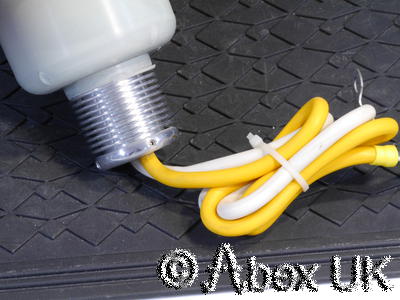

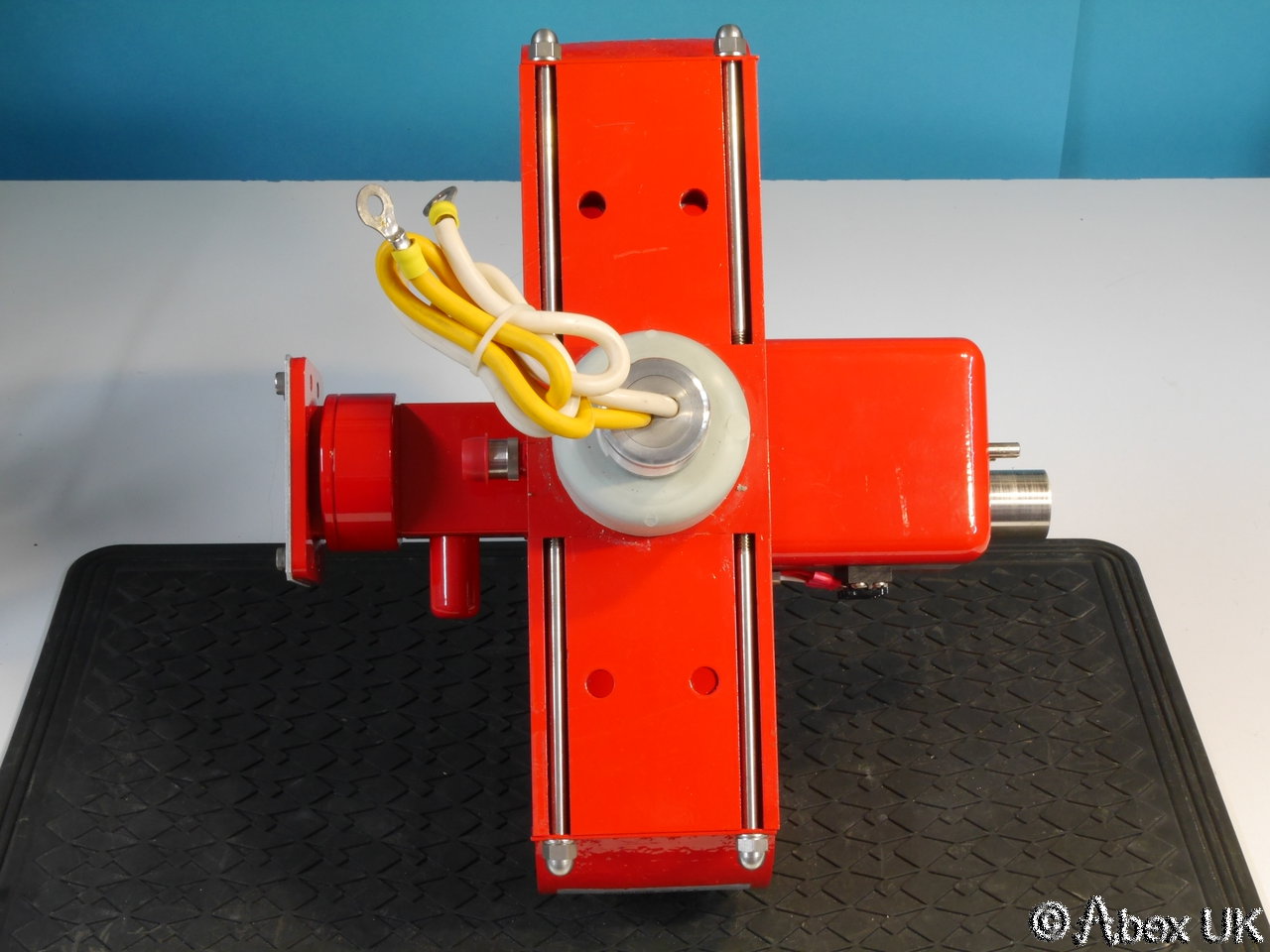

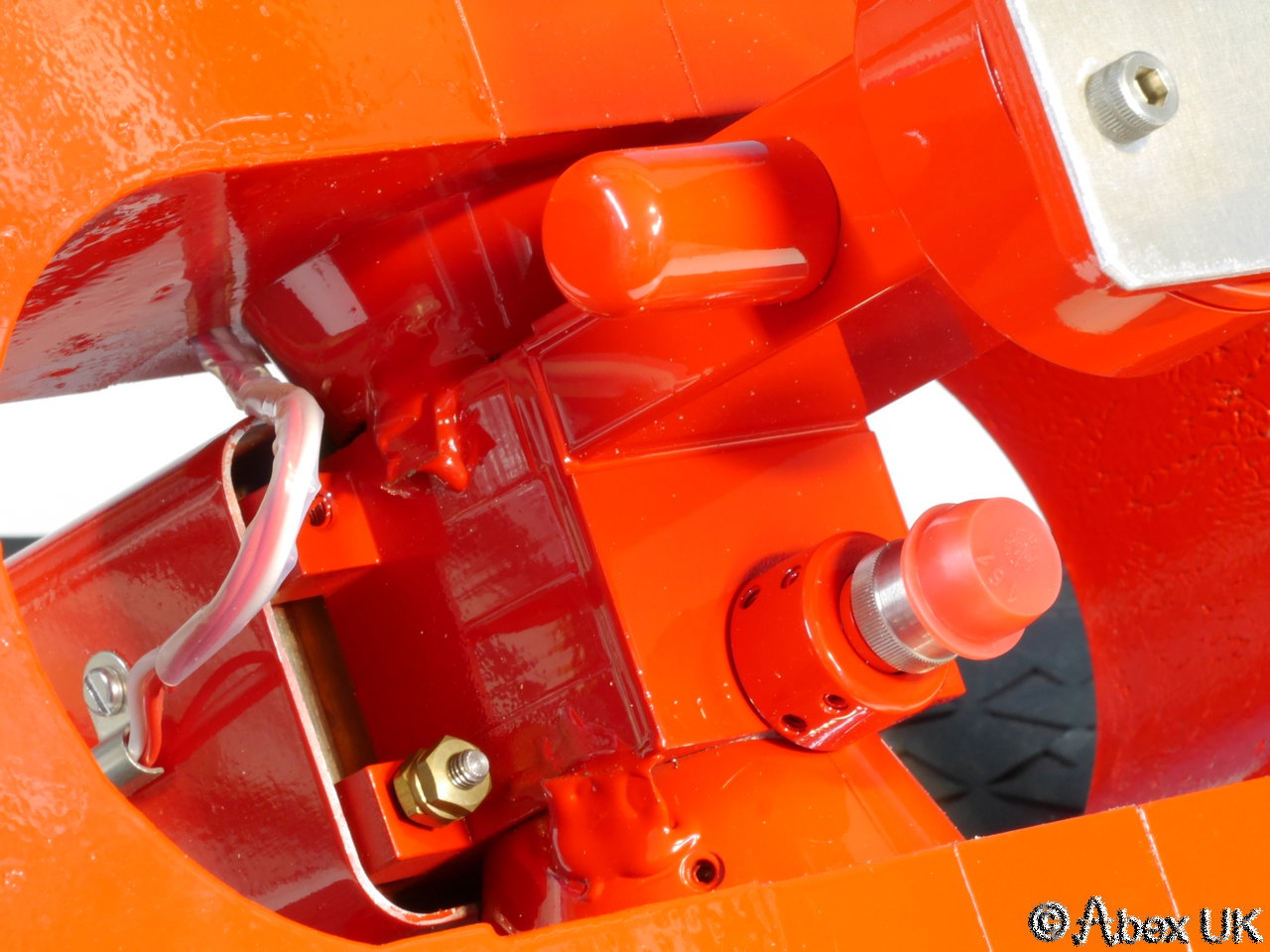

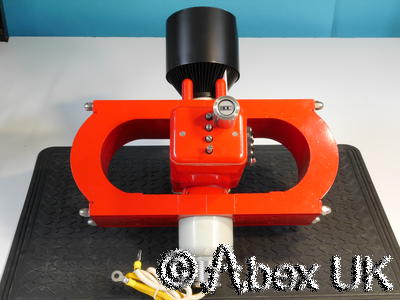

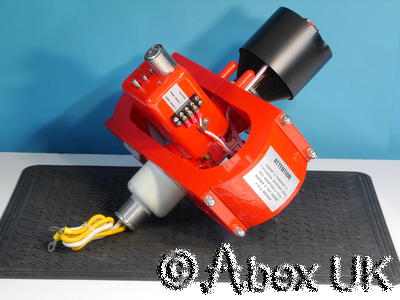

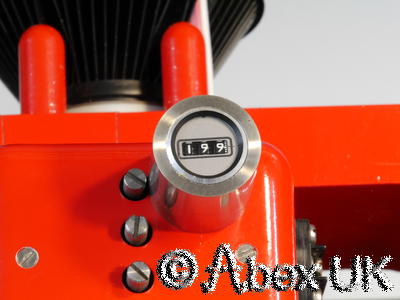

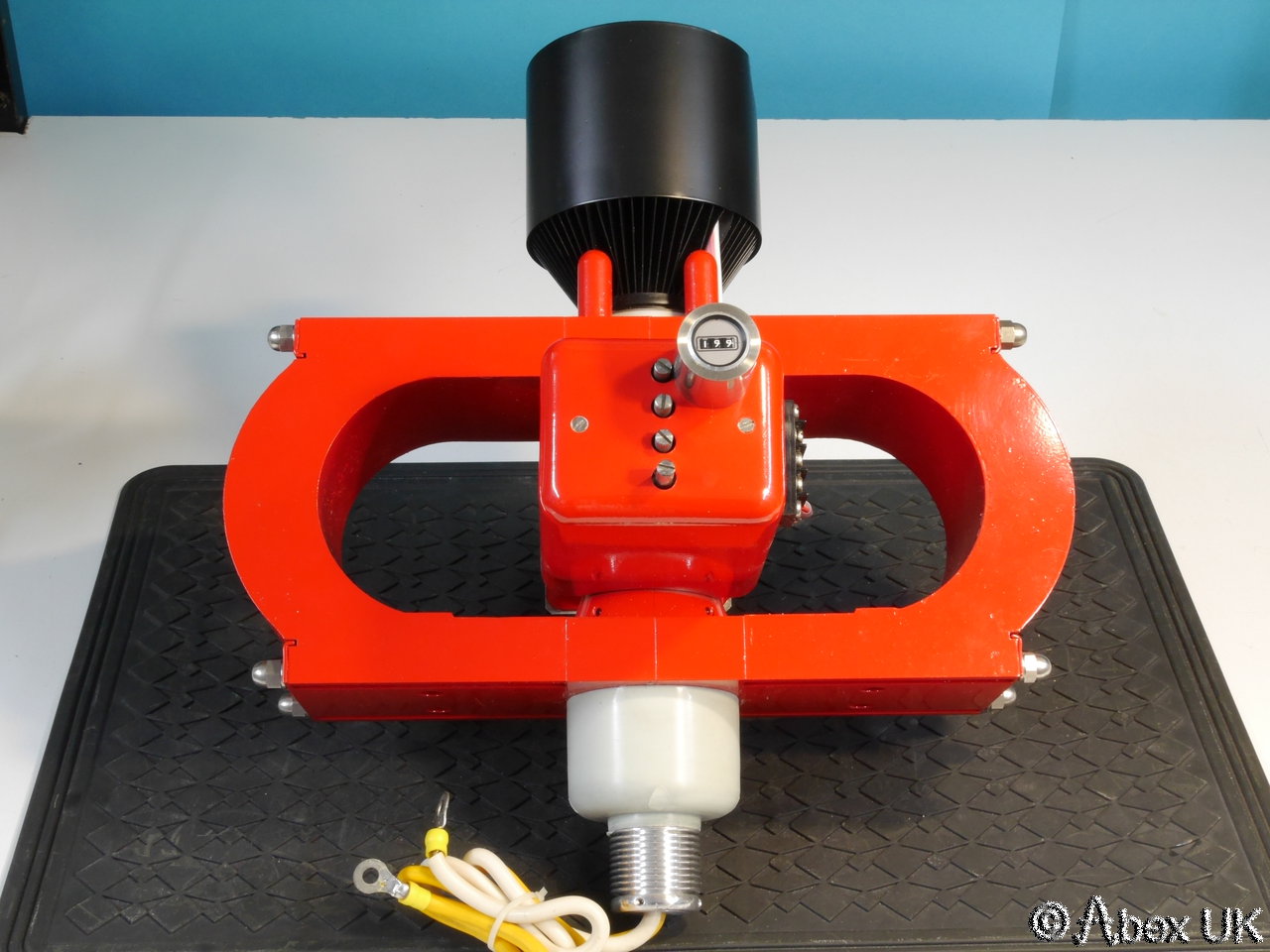

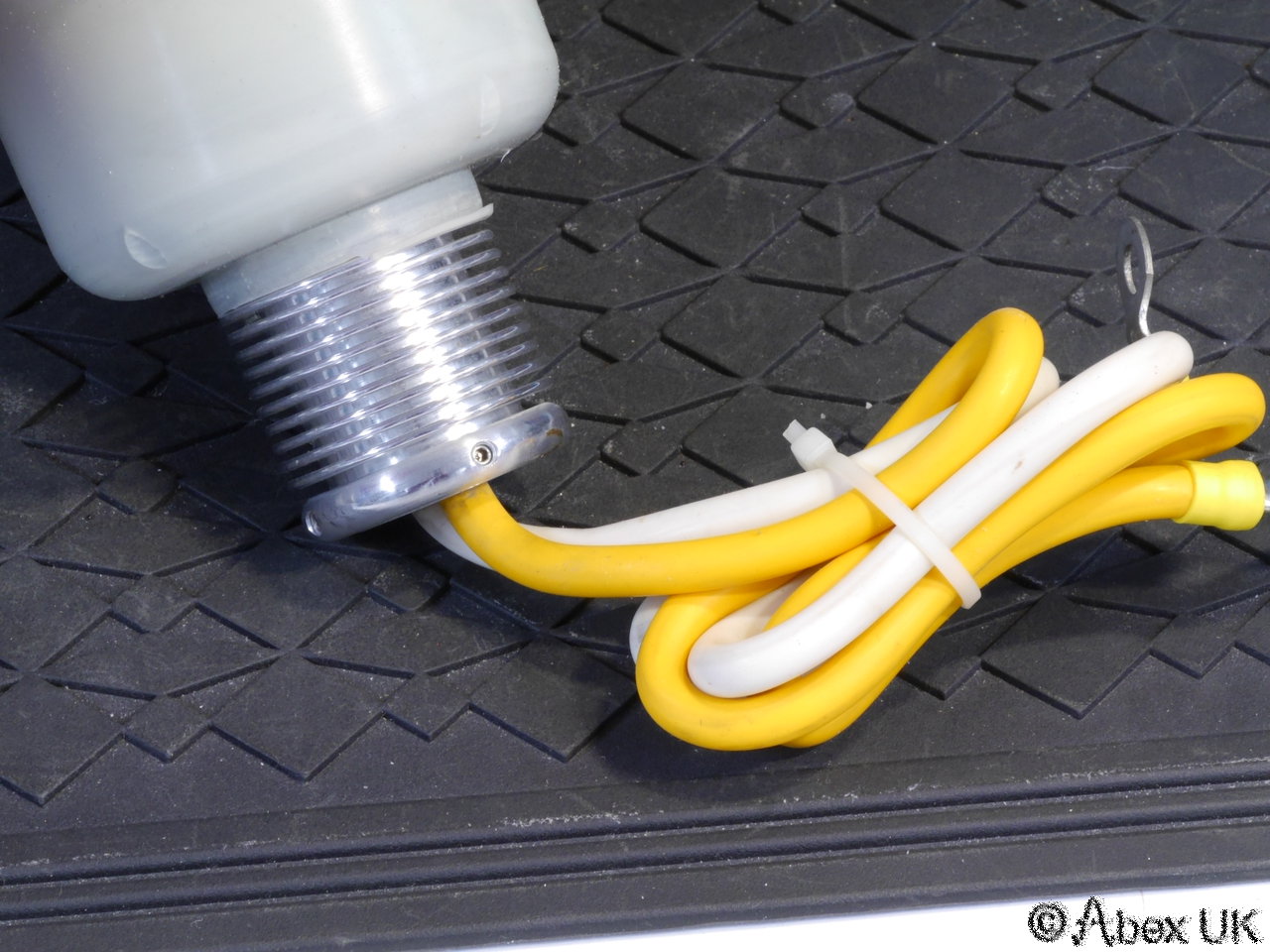

Thomson TH2441 4.4-5.0GHz Klystron Microwave Amplifier 1.3kW (NOS) (2)

(Click on image to open a high resolution version)

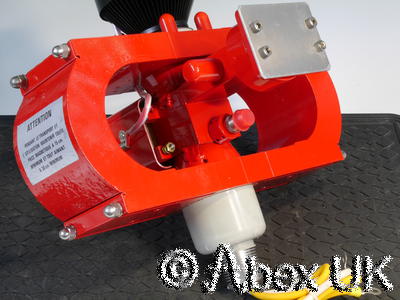

Thomson TH2441 4.4-5.0GHz Klystron Microwave Amplifier 1.3kW (NOS) (2)

(Click on image to open a high resolution version)

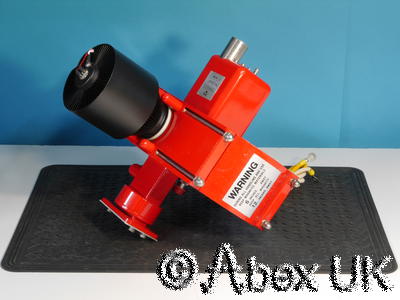

Thomson TH2441 4.4-5.0GHz Klystron Microwave Amplifier 1.3kW (NOS) (2)

(Click on image to open a high resolution version)

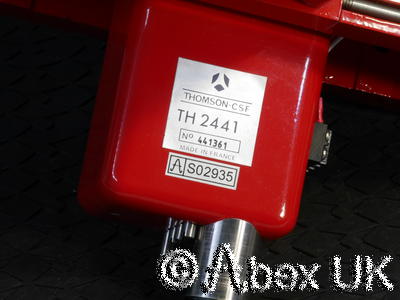

Thomson TH2441 4.4-5.0GHz Klystron Microwave Amplifier 1.3kW (NOS) (2)

(Click on image to open a high resolution version)

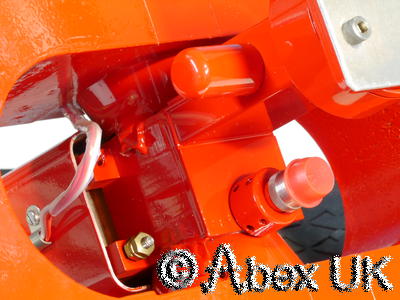

Thomson TH2441 4.4-5.0GHz Klystron Microwave Amplifier 1.3kW (NOS) (2)

(Click on image to open a high resolution version)

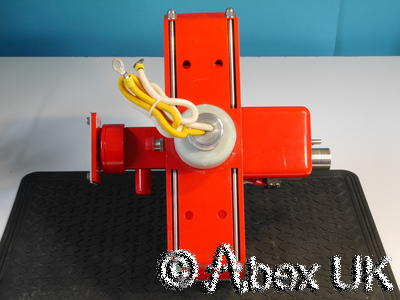

Thomson TH2441 4.4-5.0GHz Klystron Microwave Amplifier 1.3kW (NOS) (2)
