Kentech Instruments ASG1

High Voltage Step Generator

(Serial Number sn93007 , Stock Number s02459)

Without Warranty

Shipping: Request Quote

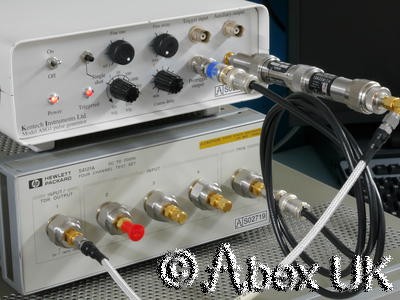

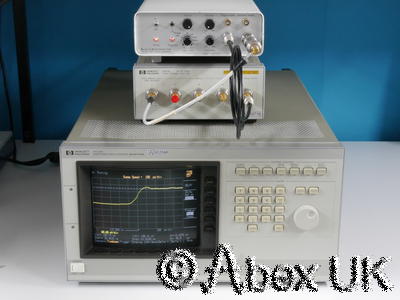

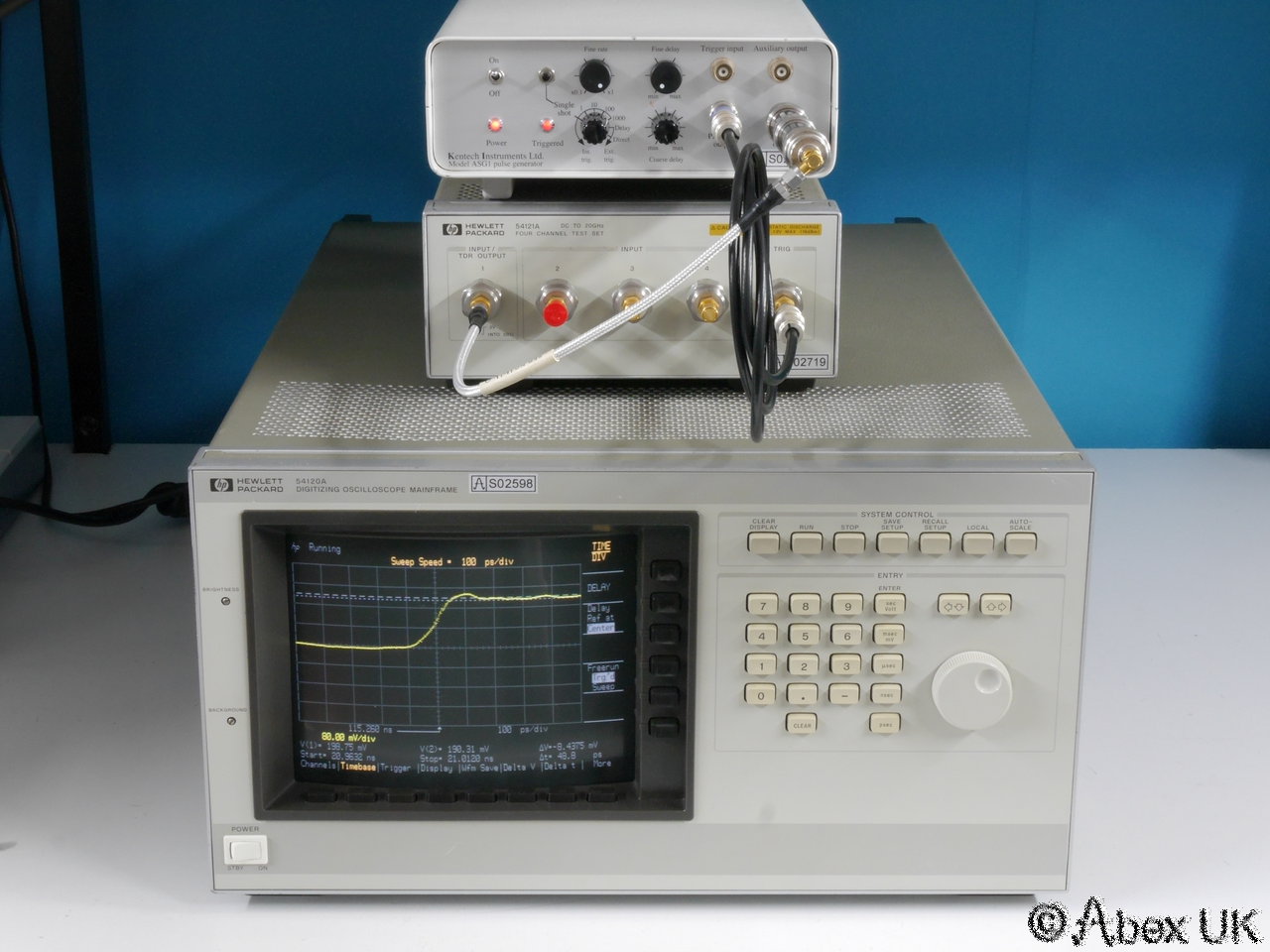

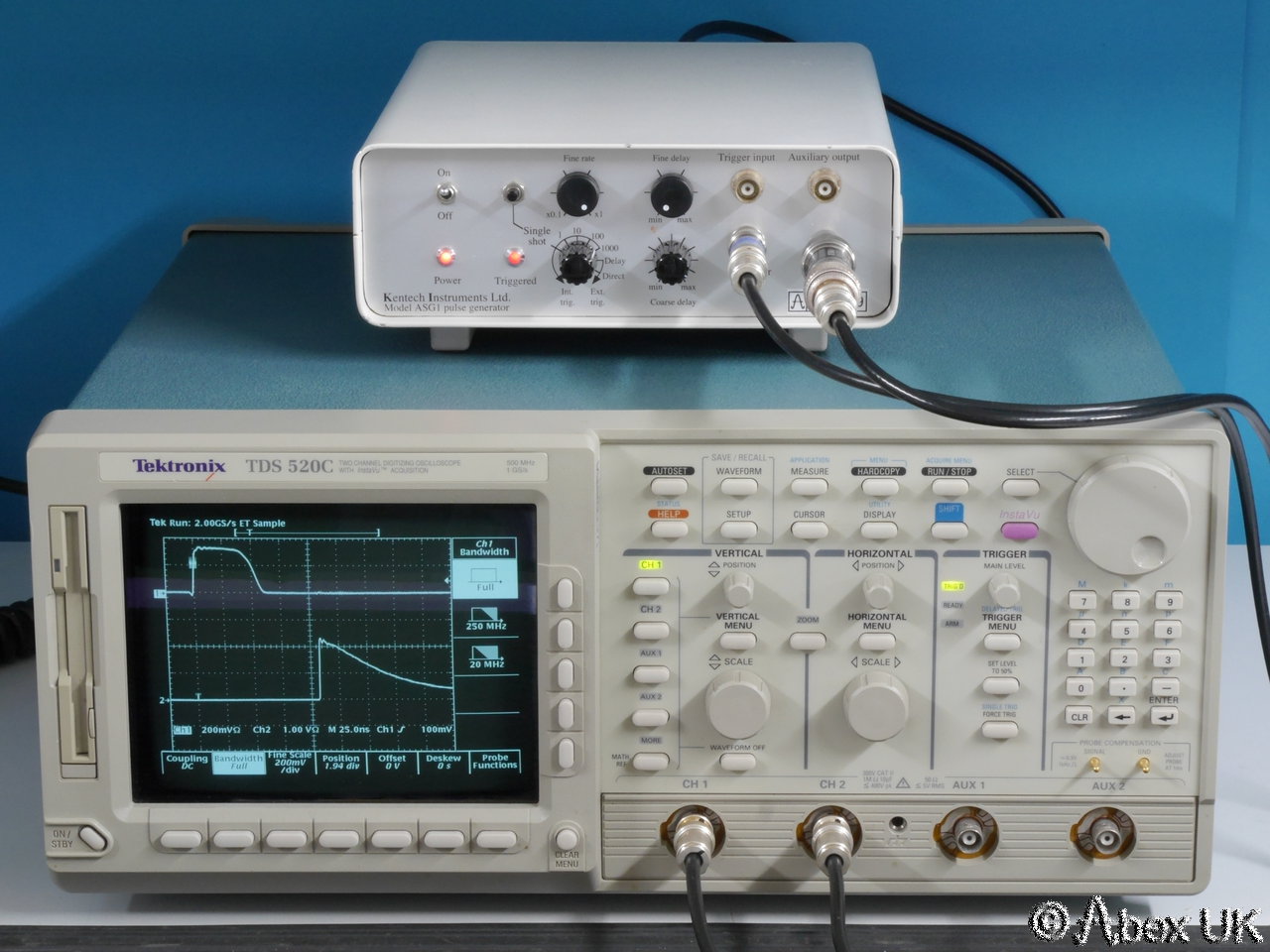

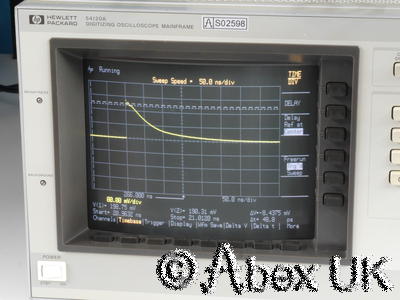

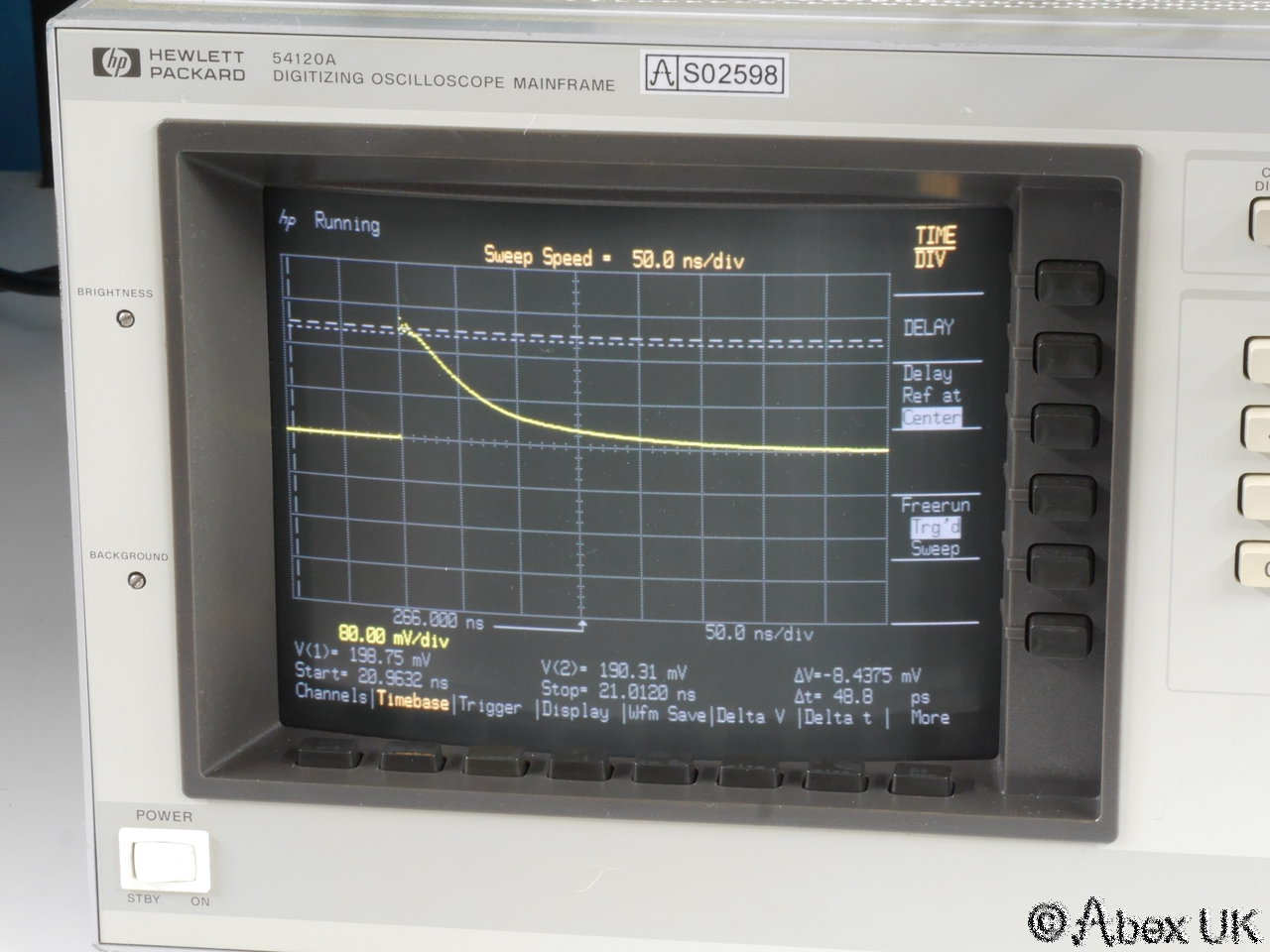

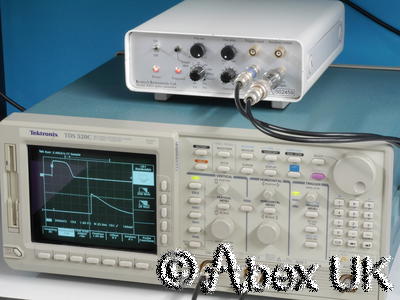

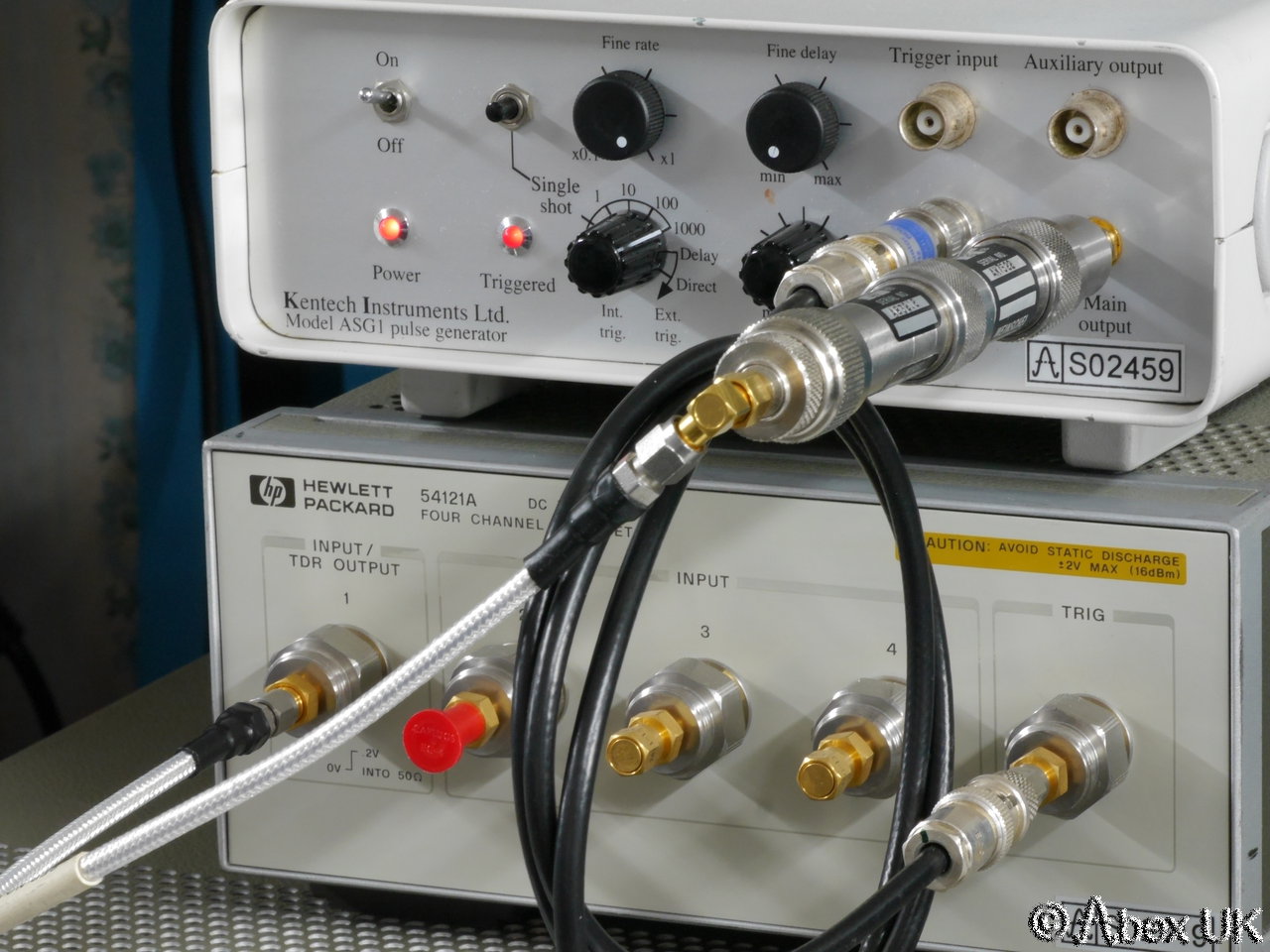

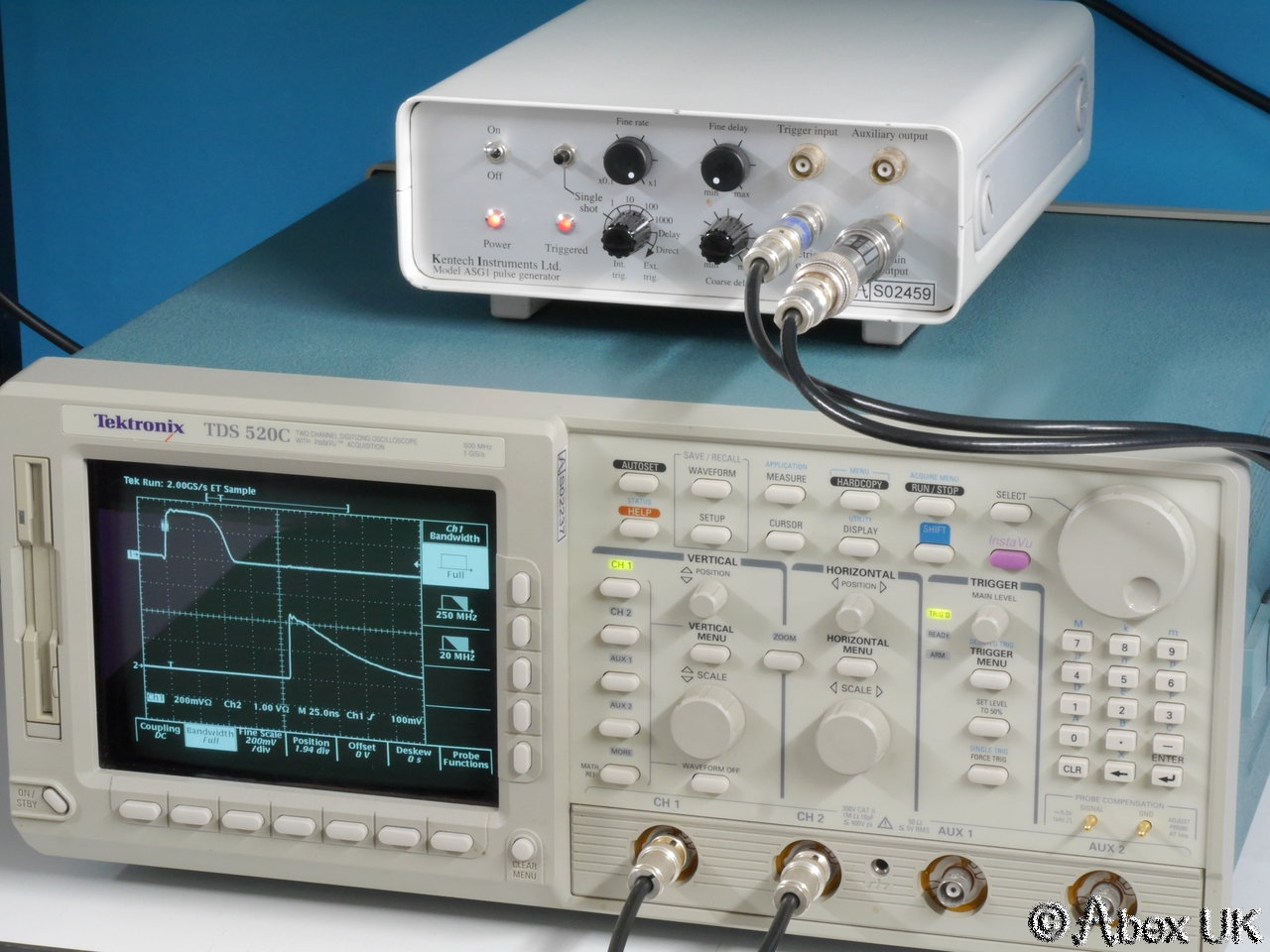

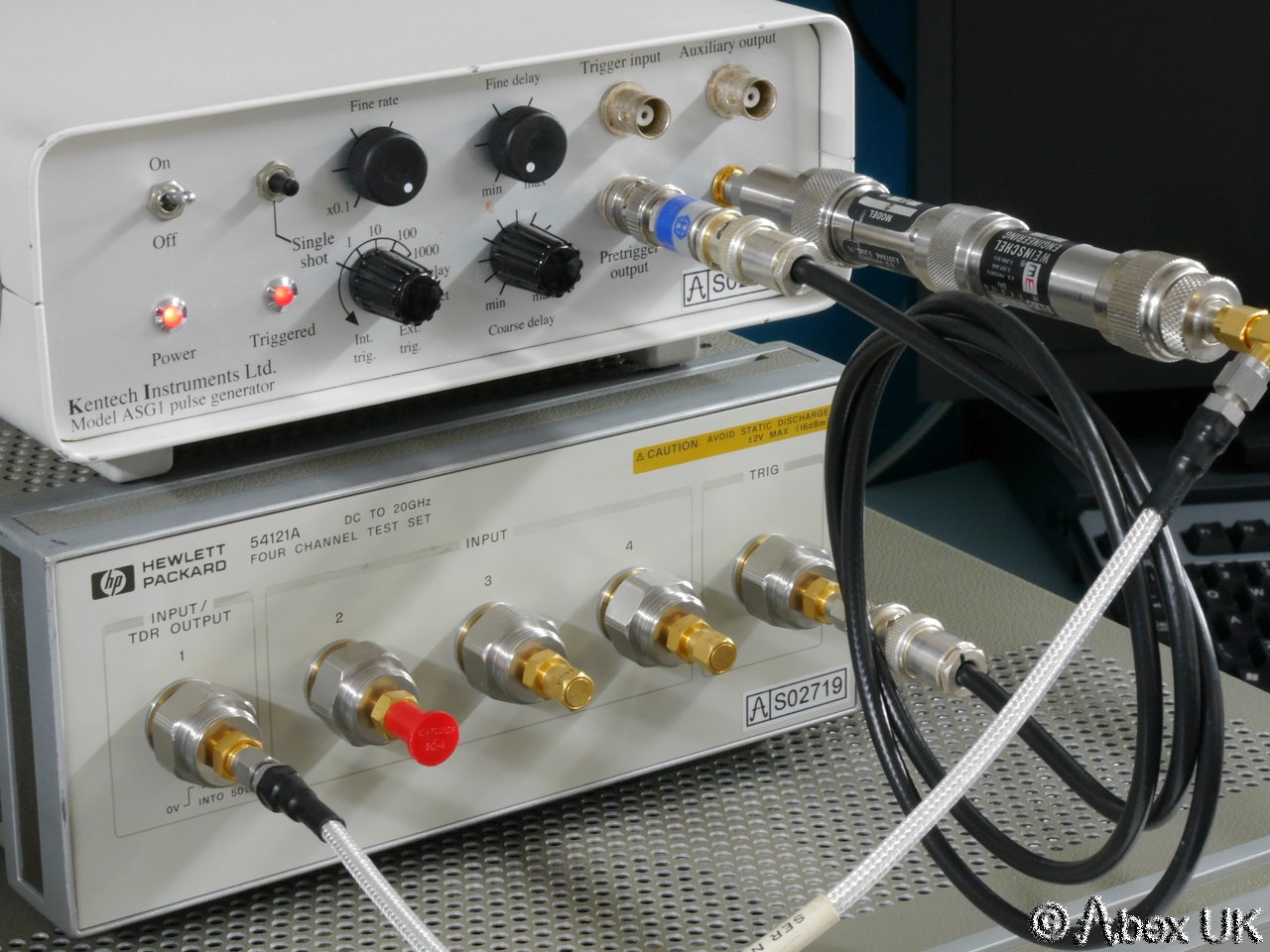

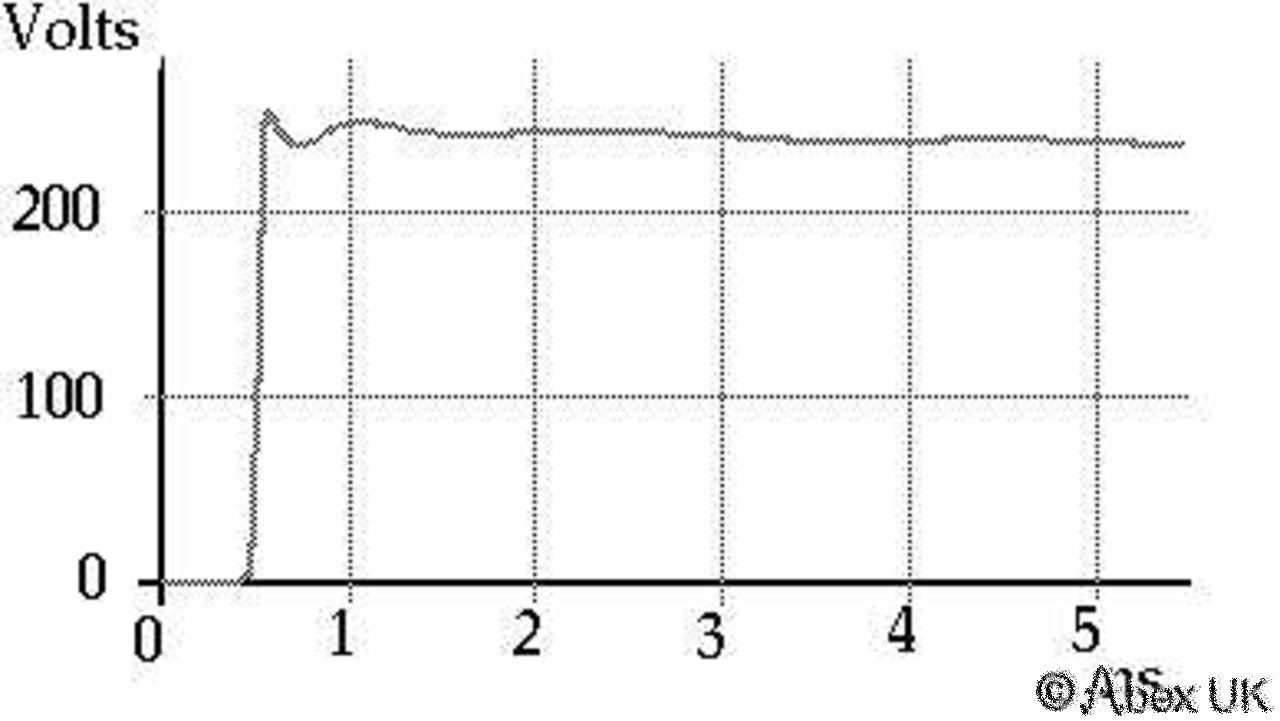

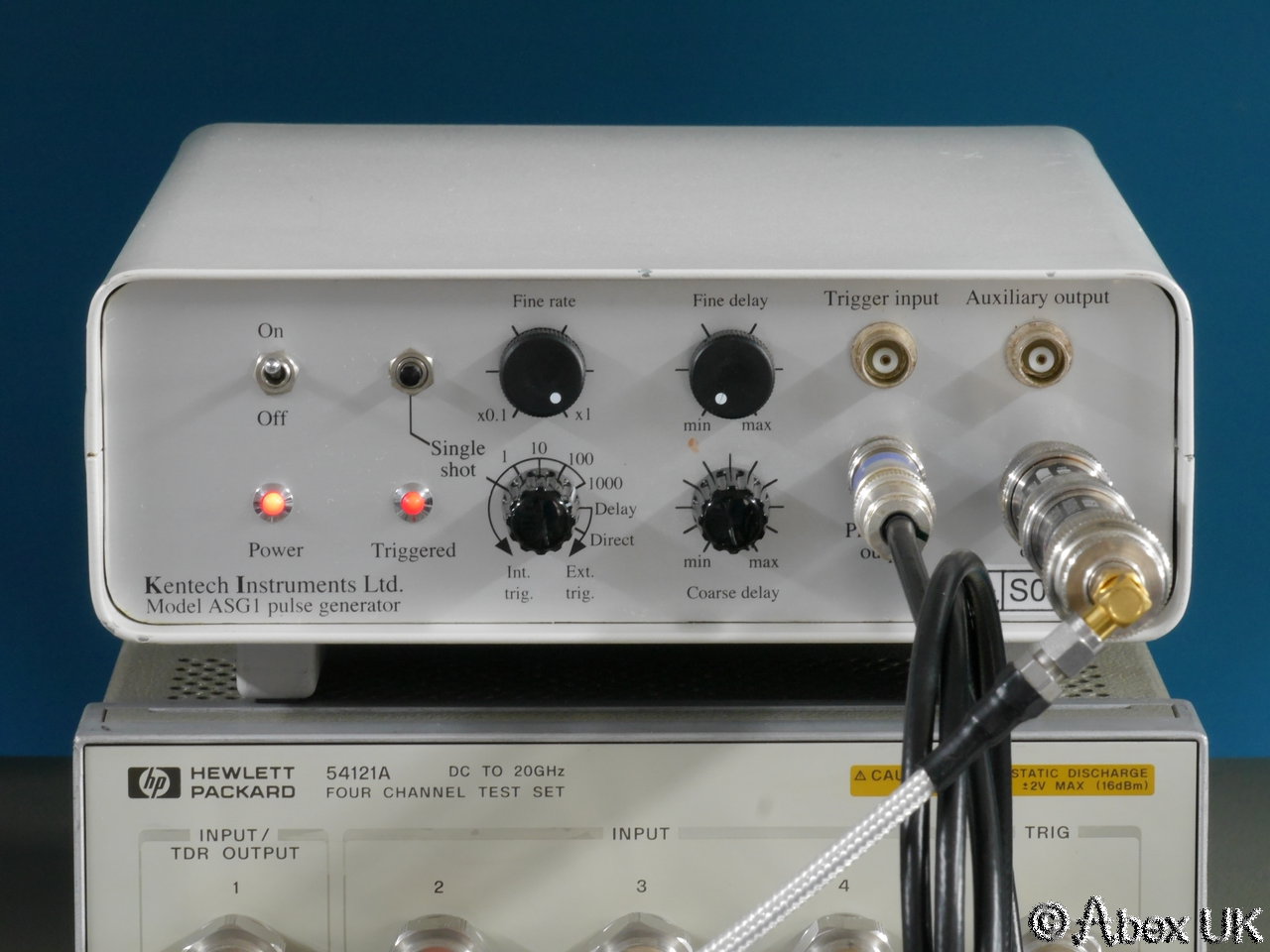

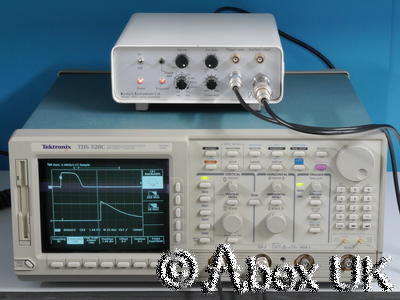

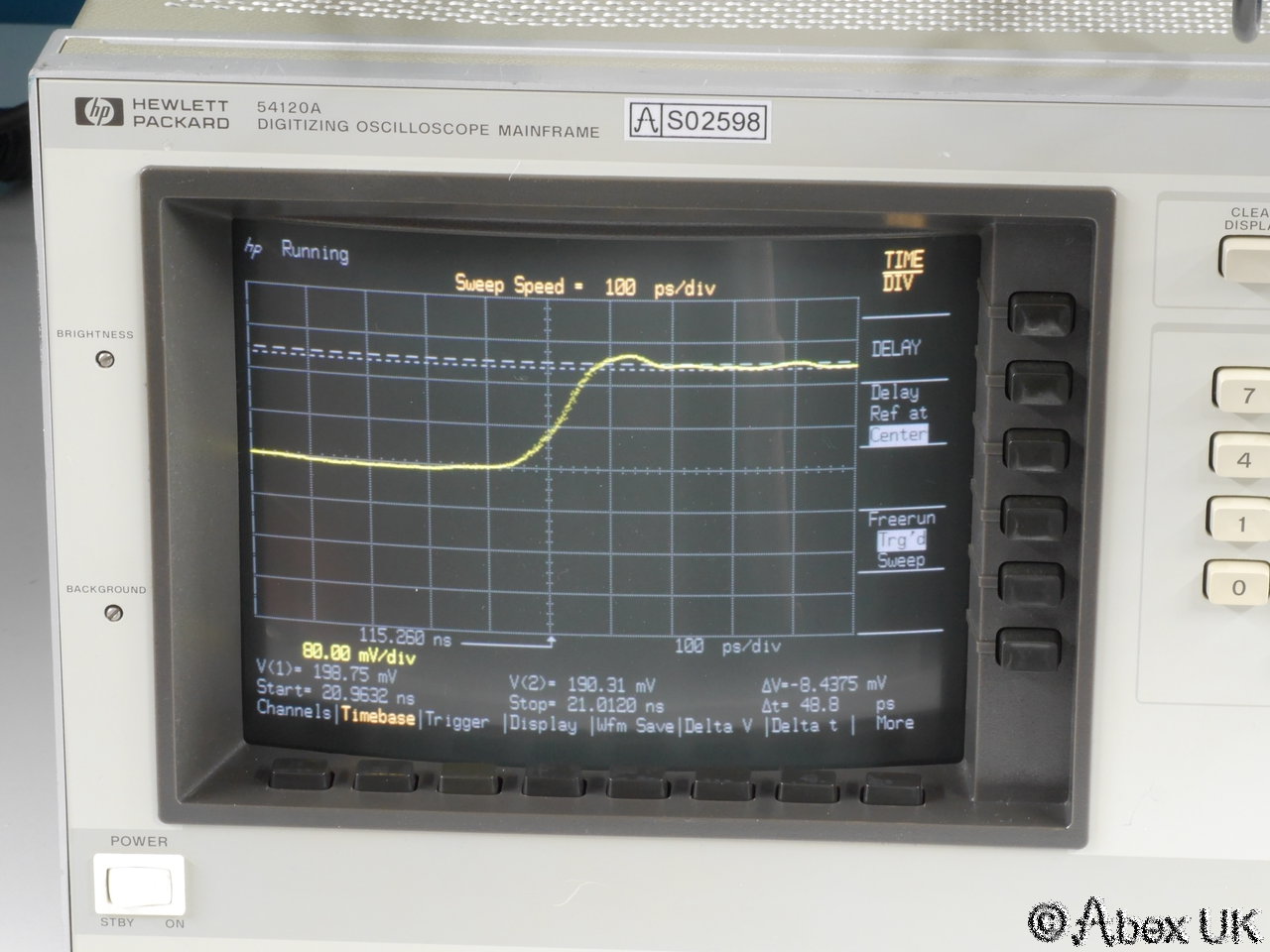

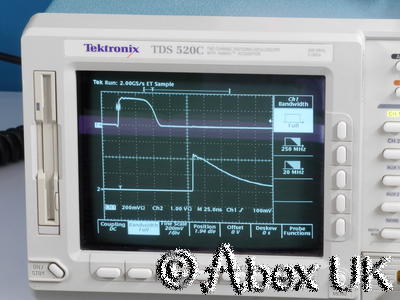

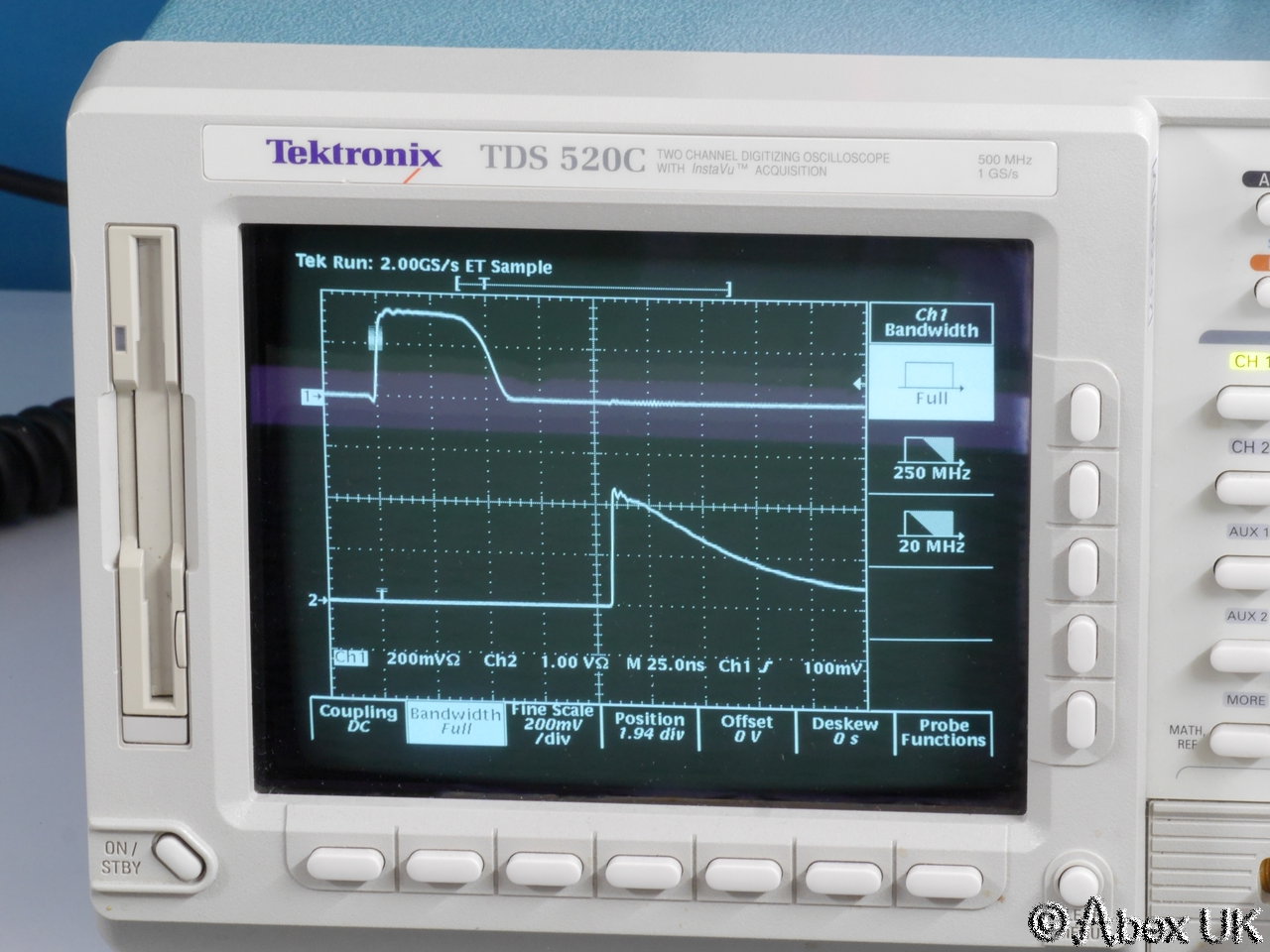

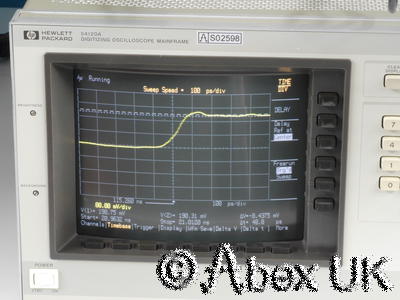

This unit is a high speed, high voltage avalanche step generaor that produces a minimum 200V step into 50 ohms. We tested this unit with a TDS520C 500MHz oscilloscope and a 40dB attenuator, and also with an HP 54120 12GHz sampling oscilloscope and a total of 60dB attenuation. See below. The rise time is shown to be around 100pS, and the peak voltage is >200V. The main output polarity is positive.

In good cosmetic condition. Please note, NO EXPORT.

Please note, items used for demonstration (e.g. Oscilloscopes, attenuators, cables etc) are NOT included but may be available separately. Please see our other items.

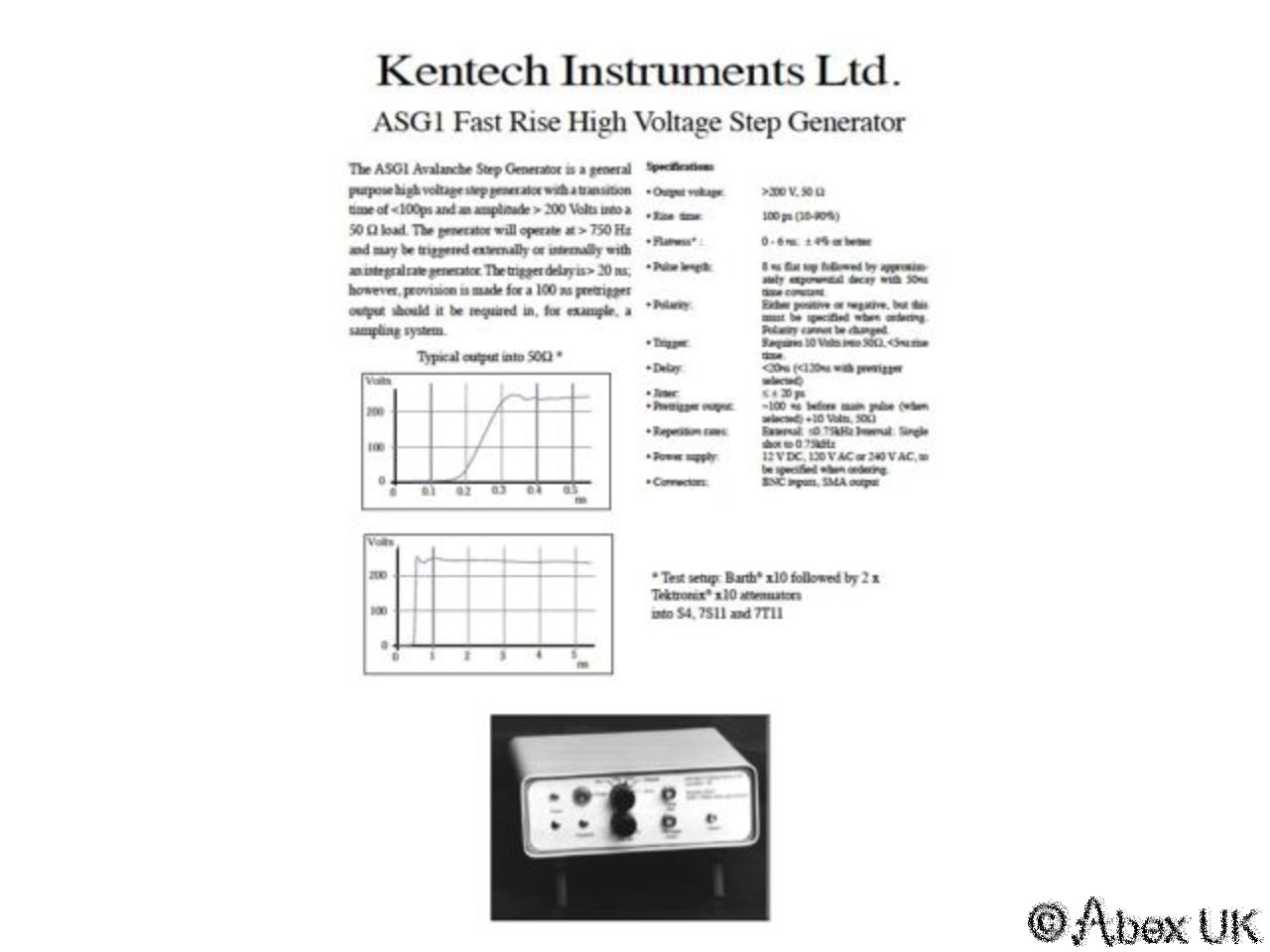

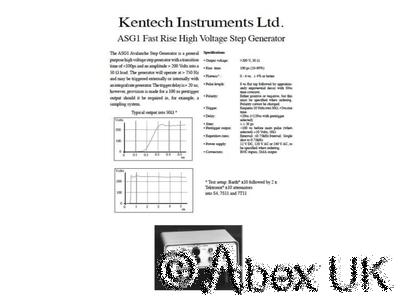

Manual.pdf
