Net Price £195 (UKP) |

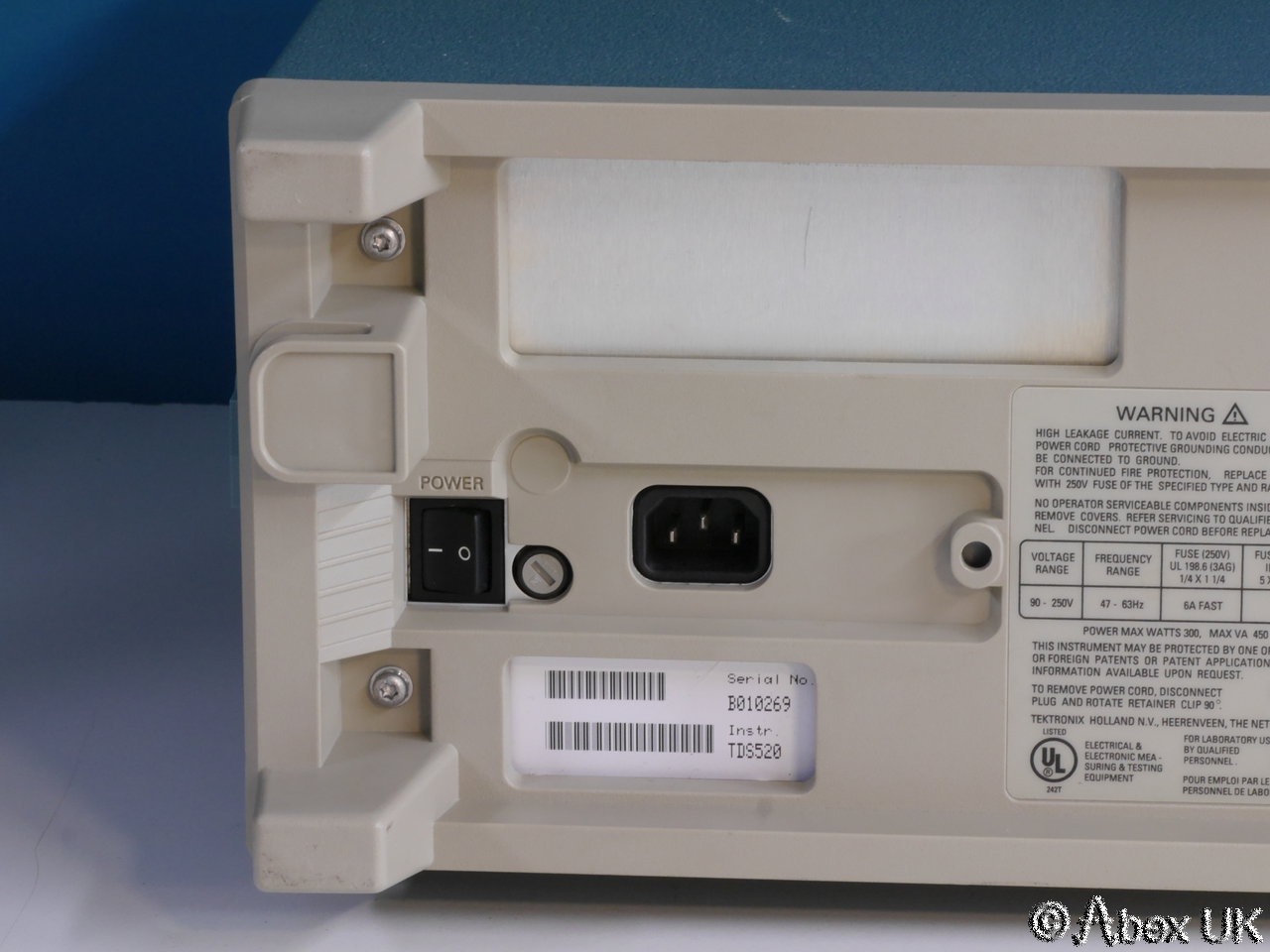

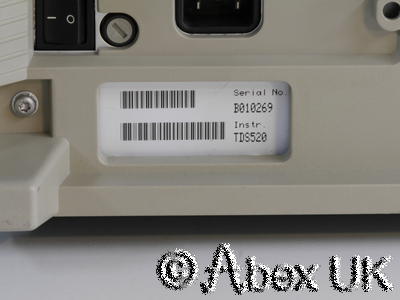

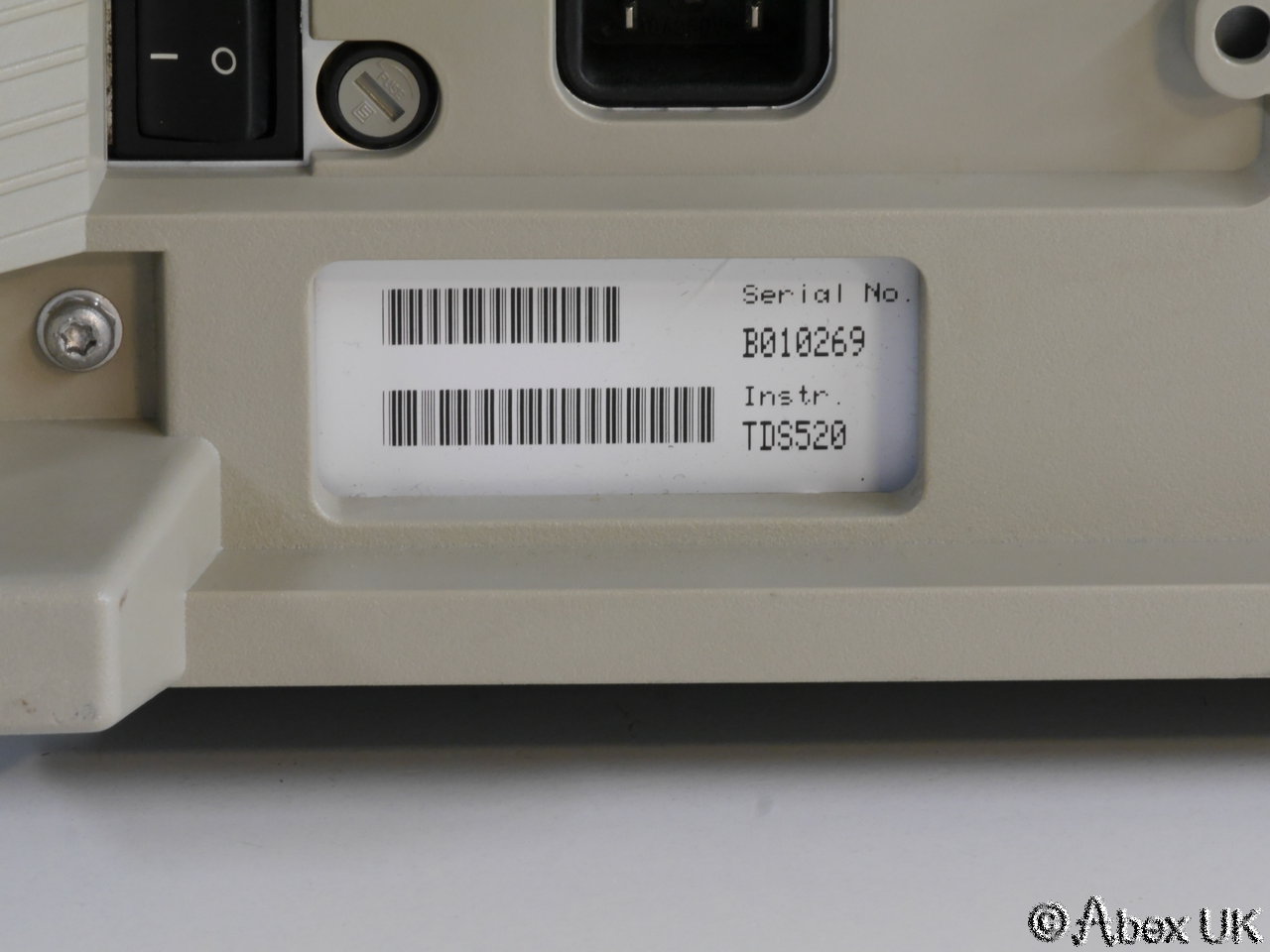

Tektronix TDS520Digital Oscilloscope 500MHz 500ms 2-Channels(Serial Number b010269 , Stock Number s02673) |
Shipping: Request Quote |

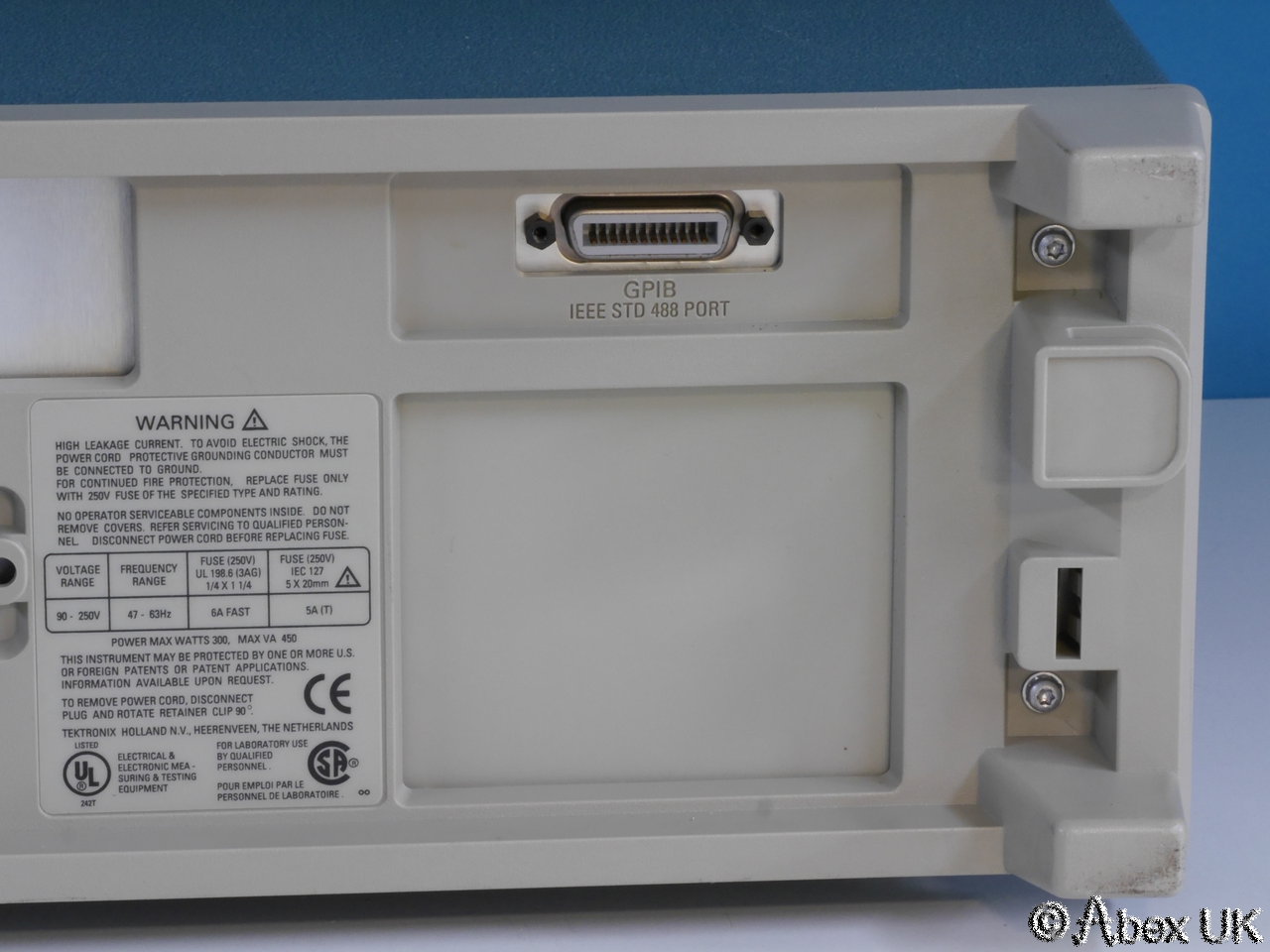

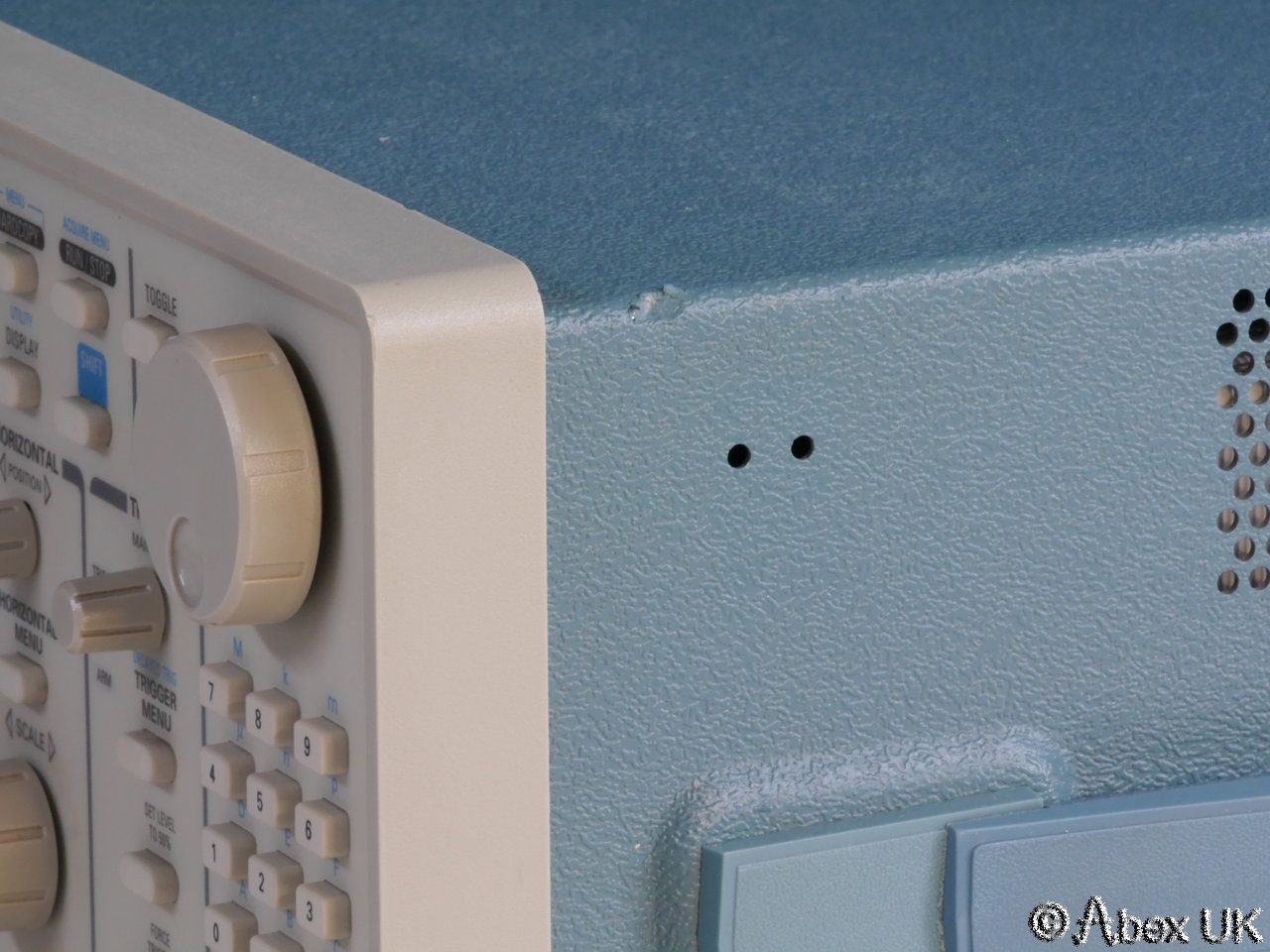

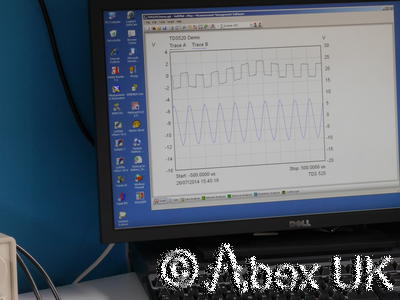

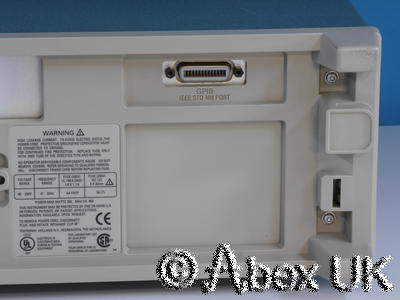

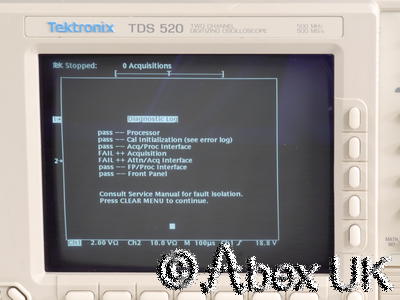

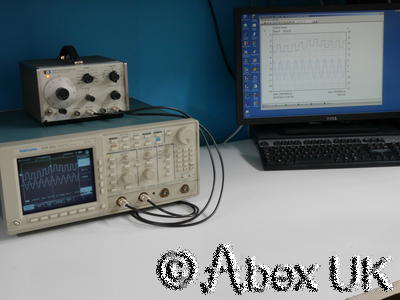

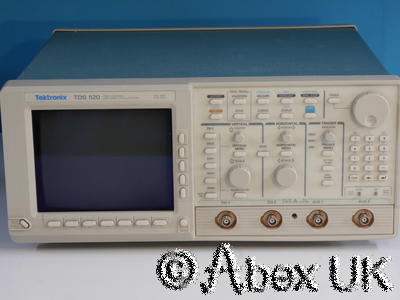

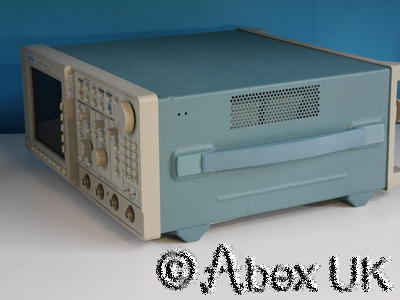

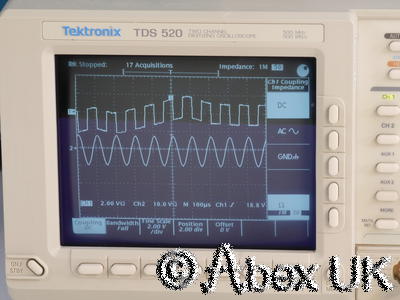

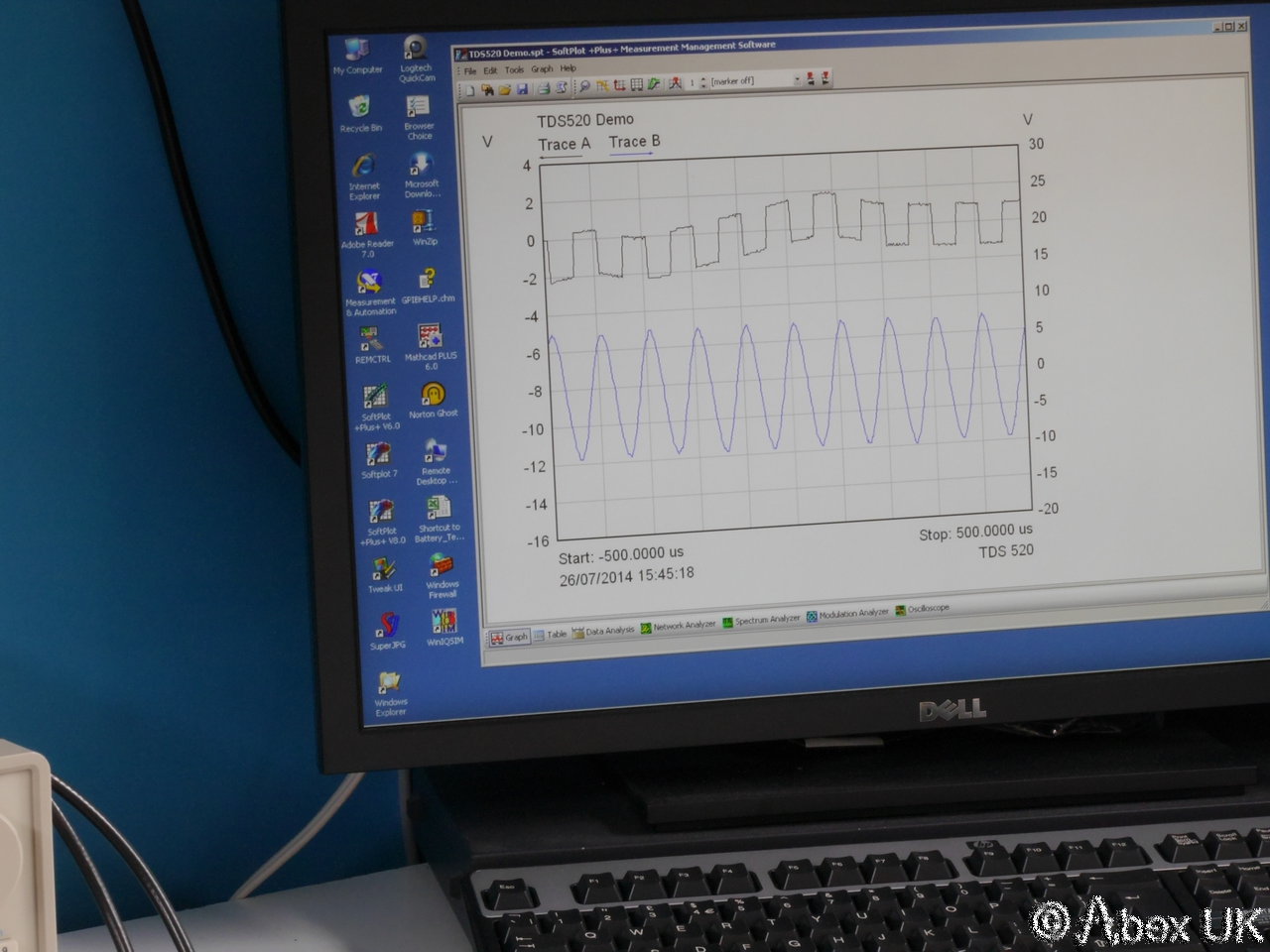

The TDS520 is a high specification digital oscilloscope with 2 channels at 500MHz bandwidth, and 500ms/s sampling rate. We are offering this unit as faulty, for "Spares or Repair". It powers up as shown and to a point, it does work. Fails self test on the usual acquisition issues. Displays a waveform but with a superimposed ac signal and level error. The GPIB interface is working correctly as shown below with trace data extraction to Softplot. Good cosmetic condition, one foot missing. No time to i

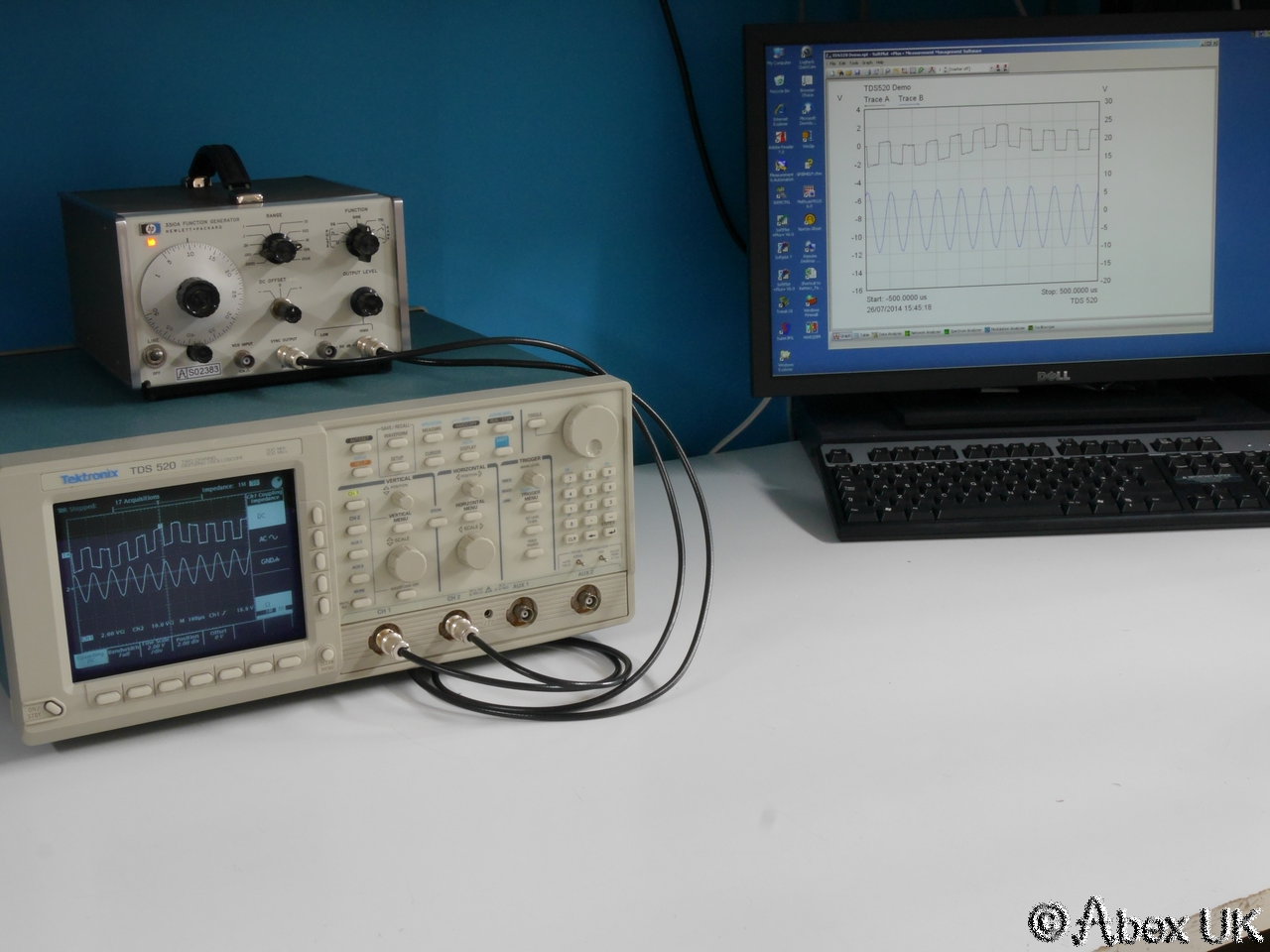

Please note, items used for demonstration (e.g. 3310A generator, PC, Softplot, cables etc) are NOT included but may be available separately. Please see our other items.
|
